Tylna klapa/elementy hydraul. for BMW 7 Series E65 745i (2003)

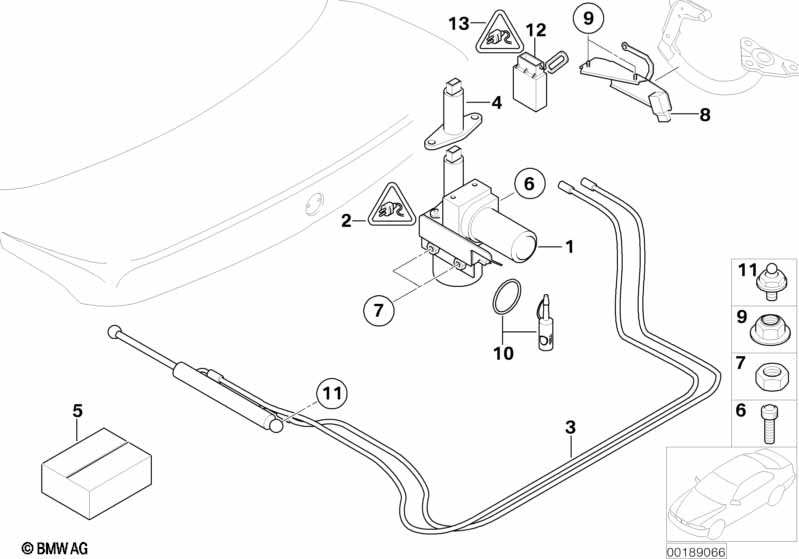

This Tylna klapa/elementy hydraul. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Agregat hydrauliczny | 1 | 09/2003 | 51247137999 | $954.57 | Shop at ECS Tuning | ||||
| 02 | Obudowa gniazda | 2 POLIG | 1 | 61138352330 | $2.00 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Okrągła tul. wtykowa 2.5 ELA z kablem | 1,0-2,5 MM² | 2 | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
| -- | Uszczelnienie przewodu pojedynczego | GELB 1.5-2.5MM² | 2 | 61131383791 | $0.20 | Shop at ECS Tuning | ||||
| 03 | Cylinder hydrauliczny | 1 | 51247202868 | $281.73 | Shop at ECS Tuning | |||||
| 05 | Kpl. elem. drob. agreg. hydr. z olejem | 1 | 51247202869 | $80.56 | Shop at ECS Tuning | |||||
| 06 | Końcówka | D=25 | 3 | 17212246033 | $1.97 | Shop at ECS Tuning | ||||
| 07 | Nakrętka z podkładką | M6-8-ZNNIV SI | 3 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 08 | Czujnik położenia | 1 | 07/2006 | 51247032635 | $101.79 | Zakończono, +podst | Shop at ECS Tuning | |||
| 09 | Nakrętka z podkładką | M6 Z1-ZNNIV SI | 2 | 07146778500 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Kpl. elem. drob. agreg. hydr. z olejem | 1 | 51247202869 | $80.56 | Shop at ECS Tuning | |||||
| 11 | Trzpień kulisty | M10 | 1 | 41218407017 | $5.63 | Shop at ECS Tuning | ||||
| 12 | Czujnik położenia | 1 | 51247202331 | $107.86 | +podst | Shop at ECS Tuning | ||||
| 13 | Uniwers. obudowa gniazda niekod. | 6 POL. | 1 | 61138383300 | $3.47 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS ELA z kablem | 0,5-0,75 MM² AG | 6 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Styk tulejowy MQS ELA z kablem | 0,35-0,5 MM² AG | 6 | 61130056961 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
