Sytem zamykania Splitdoor for BMW MINI Clubman R55 Cooper (2006)

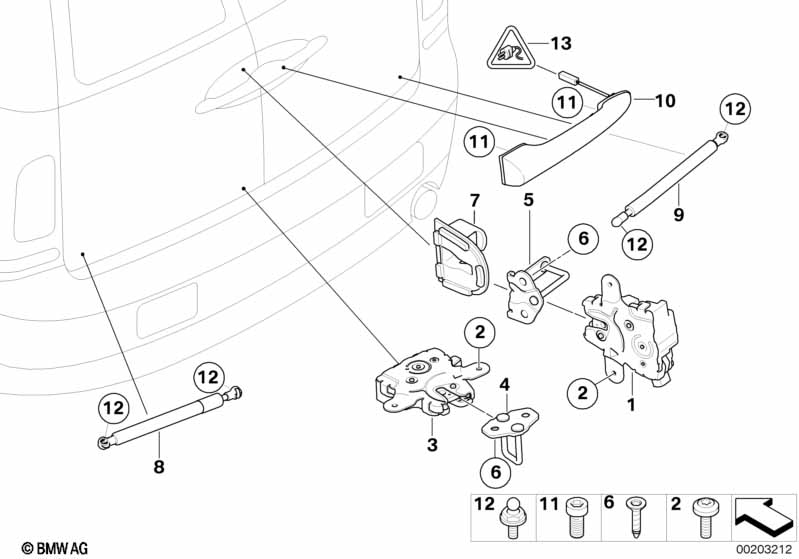

This Sytem zamykania Splitdoor technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zamek Splitdoor prawy | 1 | 51492754459 | $47.88 | Shop at ECS Tuning | |||||
| 02 | Śruba Torx z podkładką | ISA M6X16 | 2 | 07147114625 | $0.80 | Shop at ECS Tuning | ||||
| 03 | Zamek Splitdoor lewy | 1 | 51247167498 | $47.88 | Shop at ECS Tuning | |||||
| 04 | Zaczep zamka dolny | 1 | 51247167499 | $11.90 | Shop at ECS Tuning | |||||
| 05 | Zaczep zamka górny | 1 | 51247167500 | $17.20 | Shop at ECS Tuning | |||||
| 06 | Śruba | 4 | 51219463885 | Shop at ECS Tuning | ||||||
| 07 | Osłona | 1 | 51496963797 | $14.27 | Shop at ECS Tuning | |||||
| 08 | Siłownik pneumatyczny | 1 | 05/2010 | 51247167442 | $33.55 | Shop at ECS Tuning | ||||
| 09 | Siłownik pneumatyczny | 1 | 05/2010 | 51247167442 | $33.55 | Shop at ECS Tuning | ||||
| 10 | Zew. klamka drzwi Splitdoor | 2 | 11/2008 | 51247228923 | $48.25 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Zestaw kabli naprawczych | 2 | 11/2008 | 61119194763 | $14.84 | Shop at ECS Tuning | ||||
| 11 | Śruba soczewkowa | ISA M6X16 | 4 | 07146956324 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Trzpień kulisty | M8 | 4 | 51237131776 | $2.18 | Shop at ECS Tuning | ||||
| 13 | Uniwers. obudowa gniazda niekod. | 2 POL. | 1 | 06/2008 | 61136925634 | $1.65 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| 13 | Zest. napr. obudowy gniazda | 2 POL. | 1 | 06/2008 | 61132360043 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk męski MQS z kablem | 0,2- 0,5QMM | 2 | 06/2008 | 61130005198 | $1.82 | Shop at ECS Tuning | |||
| 13 | Obudowa wtyczki | 2 POL. SCHWARZ | 1 | 06/2008 | 12527511146 | $10.02 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Płaski styk gniazda MLK 1.2 | 0,25-0,5MM²/SN | 1 | 06/2008 | 61138722315 | Shop at ECS Tuning | ||||
| -- | Uszczelnienie przewodu pojedynczego | 0,22-1,0MM² | 1 | 06/2008 | 12527503411 | $0.18 | Shop at ECS Tuning | |||
