Elem. pojed. szkieletu boczn. lewe for BMW MINI Clubman R55 Cooper (2006)

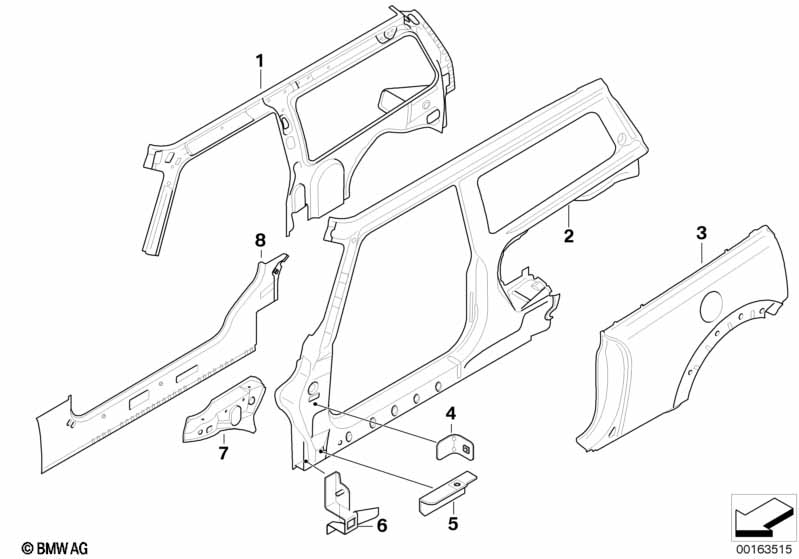

This Elem. pojed. szkieletu boczn. lewe technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rama boczna wewnętrzna lewa | 1 | 41002757913 | $811.83 | +podst | Shop at ECS Tuning | ||||
| 02 | Rama boczna zewnętrzna lewa | 1 | 41002756885 | $1125.81 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Śruba z łb.6-kątn.kołnierz.czop stożk. | M12X35 | 2 | 07148499258 | Shop at ECS Tuning | |||||
| Przeprowadzane za pomocą techniki naprawczej klejenia/nitowania. pasuje tylko do Wymiana ścianki bocz. z tyłu z lewej Numer AW 41 35 105 |
||||||||||
| 03 | Panel boczny, tylny, lewy | 1 | 41009633651 | Shop at ECS Tuning | ||||||
| Konieczne do naprawy | ||||||||||
| -- | Nit jednostronny N3 | 8 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Nit wykr. N4 | 27 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Masa uszczelniająca D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Klej do nadwozia K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 04 | Uchwyt ścianki bocznej, środkowy | 2 | 41352754656 | $3.68 | Shop at ECS Tuning | |||||
| 05 | Uchwyt ścianki bocznej, dolny | 2 | 41352754655 | $3.68 | Shop at ECS Tuning | |||||
| 06 | Mocowanie progu, lewe | 1 | 41217132511 | $7.91 | Shop at ECS Tuning | |||||
| Przeprowadzane za pomocą techniki naprawczej klejenia/nitowania. pasuje tylko do Wymiana dźwigara podporowego wnęki koła z przodu z lewej str. Numer AW 41 11 023 41 14 021 41 11 516 |
||||||||||
| 07 | Dźwigar podporowy wnęki koła prz. lewy | 1 | 41002755061 | $54.73 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Nit jednostronny N1 | 14 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Klej do nadwozia K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| 08 | Próg wewnętrzny lewy | 1 | 41002757207 | $385.24 | Shop at ECS Tuning | |||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
