dach for BMW MINI Clubman R55 Cooper (2006)

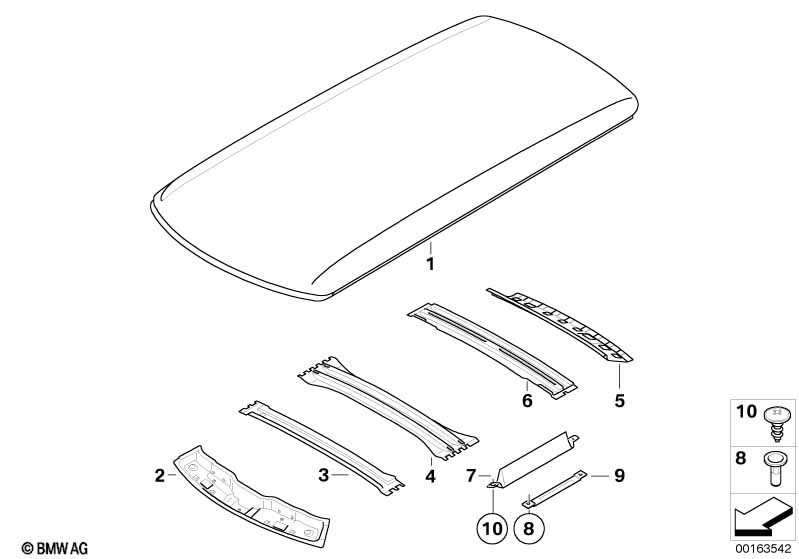

This dach technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Przeprowadzane za pomocą techniki naprawczej klejenia/nitowania. pasuje tylko do Wymiana poszycia dachu Numer AW 41 31 000 |
||||||||||
| 01 | Poszycie dachu | 1 | 41002756891 | $671.00 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Nit jednostronny N3 | 4 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Śruba | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Klej do nadwozia K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Nit wykr. N4 | 35 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Klej do nadwozia K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| Dla samochodów z Dach przesuwno-uchylny, elektryczny Przeprowadzane za pomocą techniki naprawczej klejenia/nitowania. pasuje tylko do Wymiana poszycia dachu Numer AW 41 31 001 |
S403A=Tak |
|||||||||
| 01 | Panel dachu panoramicznego | 1 | 41002756892 | $873.24 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Nit jednostronny N3 | 4 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Śruba | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Klej do nadwozia K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Nit wykr. N4 | 35 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Klej do nadwozia K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| 02 | El. konstrukcji ramowej górny | 1 | 41002757157 | $99.70 | Shop at ECS Tuning | |||||
| Dla samochodów z Dach przesuwno-uchylny, elektryczny |
S403A=Nie |
|||||||||
| 03 | Poprzeczka dachowa przednia | 1 | 41002757245 | $21.41 | Shop at ECS Tuning | |||||
| 04 | Pałąk dachowy środkowy | 1 | 41002757244 | $14.94 | Shop at ECS Tuning | |||||
| 05 | Rama tylnej szyby, górna | 1 | 41002757246 | $131.53 | Shop at ECS Tuning | |||||
| 06 | Pałąk dachowy tylny | 1 | 41002757243 | $13.01 | Shop at ECS Tuning | |||||
| 07 | Wzmocnienie bagażnika dachowego | 4 | 41002757336 | $4.43 | Shop at ECS Tuning | |||||
| 08 | Nakrętka nitu z łbem płaskim | M5 | 8 | 41002756580 | $0.80 | Shop at ECS Tuning | ||||
| 09 | Uchwyt | 4 | 51717234238 | $4.25 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Śruba torx | 8 | 07149194838 | $0.38 | Shop at ECS Tuning | |||||
| 10 | Śruba torx | M5X11 | 8 | 10/2008 | 41002753672 | $0.46 | Shop at ECS Tuning | |||
