Zderzak tylny for BMW 5 Series E28 M535i (1987)

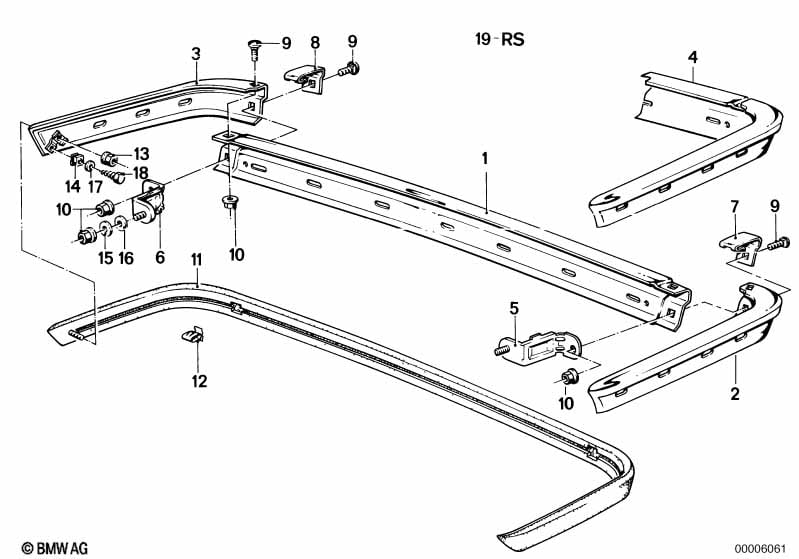

This Zderzak tylny technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zderzak tylny, el. środkowy | 1 | 51121934665 | $412.09 | Zakończono | Shop at ECS Tuning | ||||
| 01 | Zderzak gruntowany tylny środkowy | 1 | 51121961876 | $177.64 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Zderzak tylny, el. lewy | 1 | 51121867607 | $201.05 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Zderzak gruntowany tylny lewy | 1 | 51121961913 | $156.13 | Shop at ECS Tuning | |||||
| 03 | Zderzak tylny, el. prawy | 1 | 51121867608 | $201.05 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Zderzak gruntowany tylny prawy | 1 | 51121961914 | $156.13 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Zderzak tylny | 1 | 51121933900 | Zakończono | Shop at ECS Tuning | |||||
| 05 | Uchwyt lewy | 1 | 03/1985 | 51121925753 | $14.12 | Zakończono | Shop at ECS Tuning | |||
| 06 | Uchwyt prawy | 1 | 03/1985 | 51121925754 | $14.12 | Zakończono | Shop at ECS Tuning | |||
| 07 | Osłona lewa | 1 | 51121867609 | $36.26 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Osłona gruntowana, lewa | 1 | 51121961919 | $21.61 | Shop at ECS Tuning | |||||
| 08 | Osłona prawa | 1 | 51121867610 | $36.26 | Shop at ECS Tuning | |||||
| 08 | Osłona gruntowana, prawa | 1 | 51121961920 | $24.85 | Shop at ECS Tuning | |||||
| 09 | Śruba z łbem czworokątnym | M8X16 | 4 | 51121804528 | $0.57 | Shop at ECS Tuning | ||||
| 10 | Nakrętka z podkładką | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 11 | Listwa zderzaka | 1 | 51121867615 | $119.35 | Shop at ECS Tuning | |||||
| 12 | Klamra | X | 51111867927 | $0.42 | Shop at ECS Tuning | |||||
| 13 | Nakrętka z podkładką | M6 | 4 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 14 | Nakrętka | ST6.3 ZN | 2 | 51111900386 | $2.90 | Zakończono | Shop at ECS Tuning | |||
| 15 | Podkładka gumowa | 2 | 51121900409 | $0.80 | Zakończono | Shop at ECS Tuning | ||||
| 16 | Podkładka | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 17 | Podkładka gumowa | 2 | 51121886299 | $0.15 | Shop at ECS Tuning | |||||
| 18 | Blachowkręt | ST6,3X25-C-Z2 | 2 | 07119916973 | $0.58 | Zakończono | Shop at ECS Tuning | |||
| 19 | Kpl. części mocujących | 1 | 51129056462 | $14.93 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
