Lusterko zewnętrzne for BMW 5 Series E39 520d

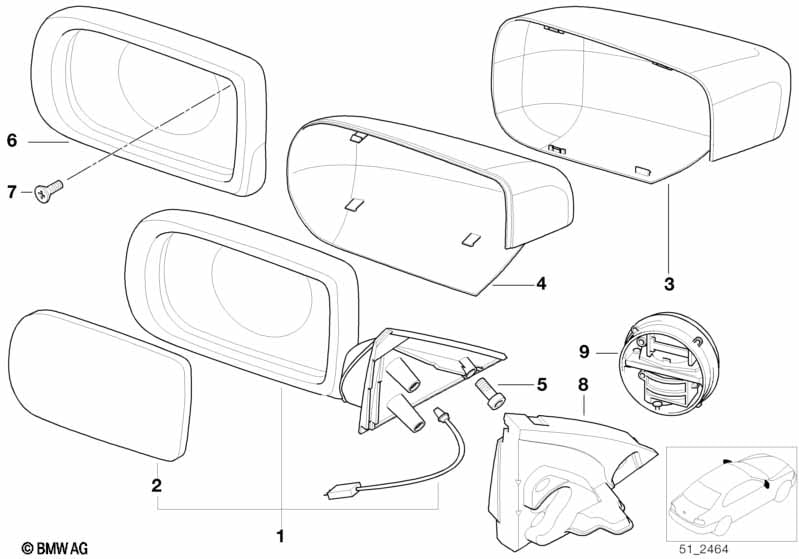

This Lusterko zewnętrzne technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| pasuje tylko do mechaniki składania pasuje tylko do technol. elektrochrom. |
||||||||||
| 03 | Pokrywka gruntowana lewa | 1 | 51168165115 | $65.98 | Shop at ECS Tuning | |||||
| 03 | Pokrywka gruntowana prawa | 1 | 51168165116 | $65.98 | Shop at ECS Tuning | |||||
| 03 | Pokrywka lakierowana lewa | CODE - UNI/MET. | 1 | 51169067424 | $188.16 | Zakończono | Shop at ECS Tuning | |||
| Przy zamawianiu podać kod koloru | ||||||||||
| 03 | Pokrywka lakierowana prawa | CODE - UNI/MET. | 1 | 51169067425 | $188.16 | Zakończono | Shop at ECS Tuning | |||
| Przy zamawianiu podać kod koloru | ||||||||||

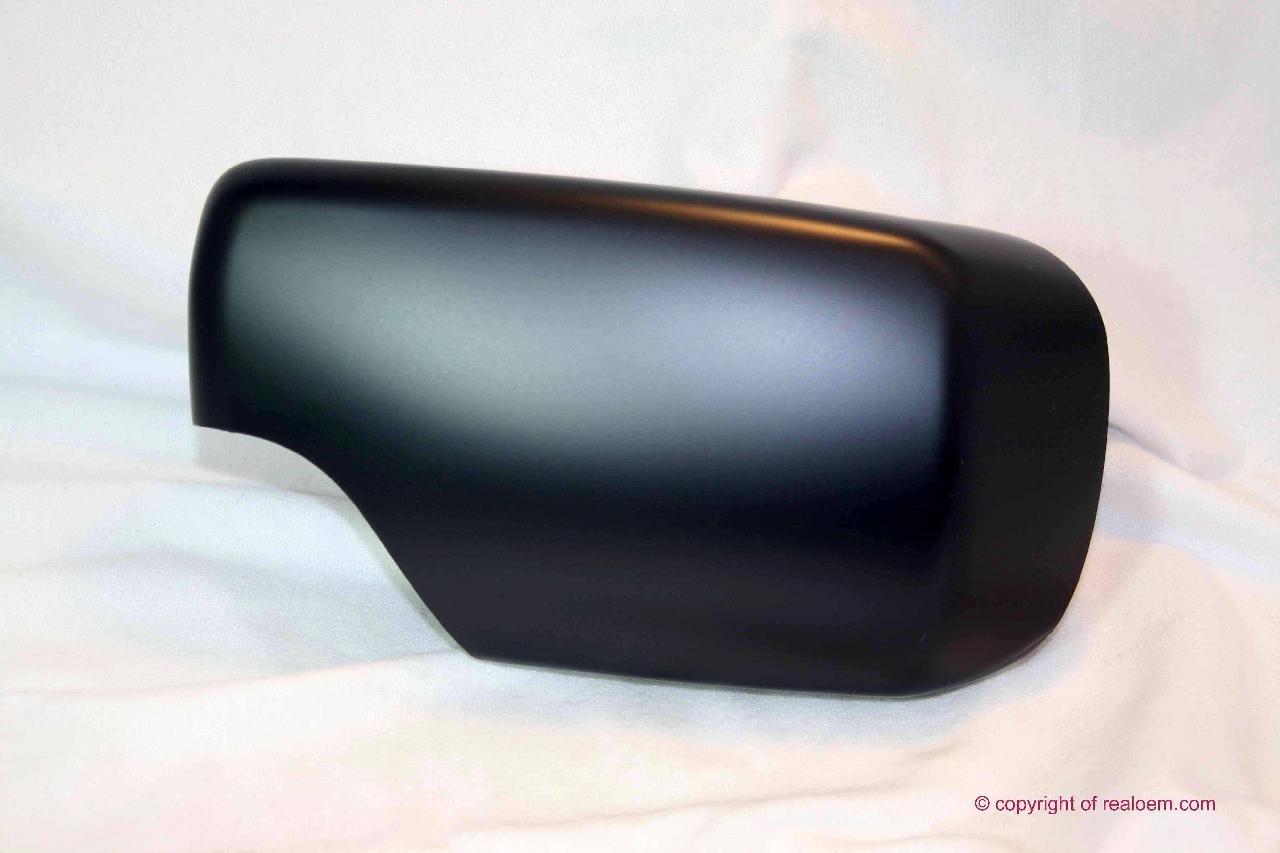

| 04 | Osłona gruntowana lewa | 1 | 09/1997 | 51168238375 | $48.89 | Shop at ECS Tuning | ||||

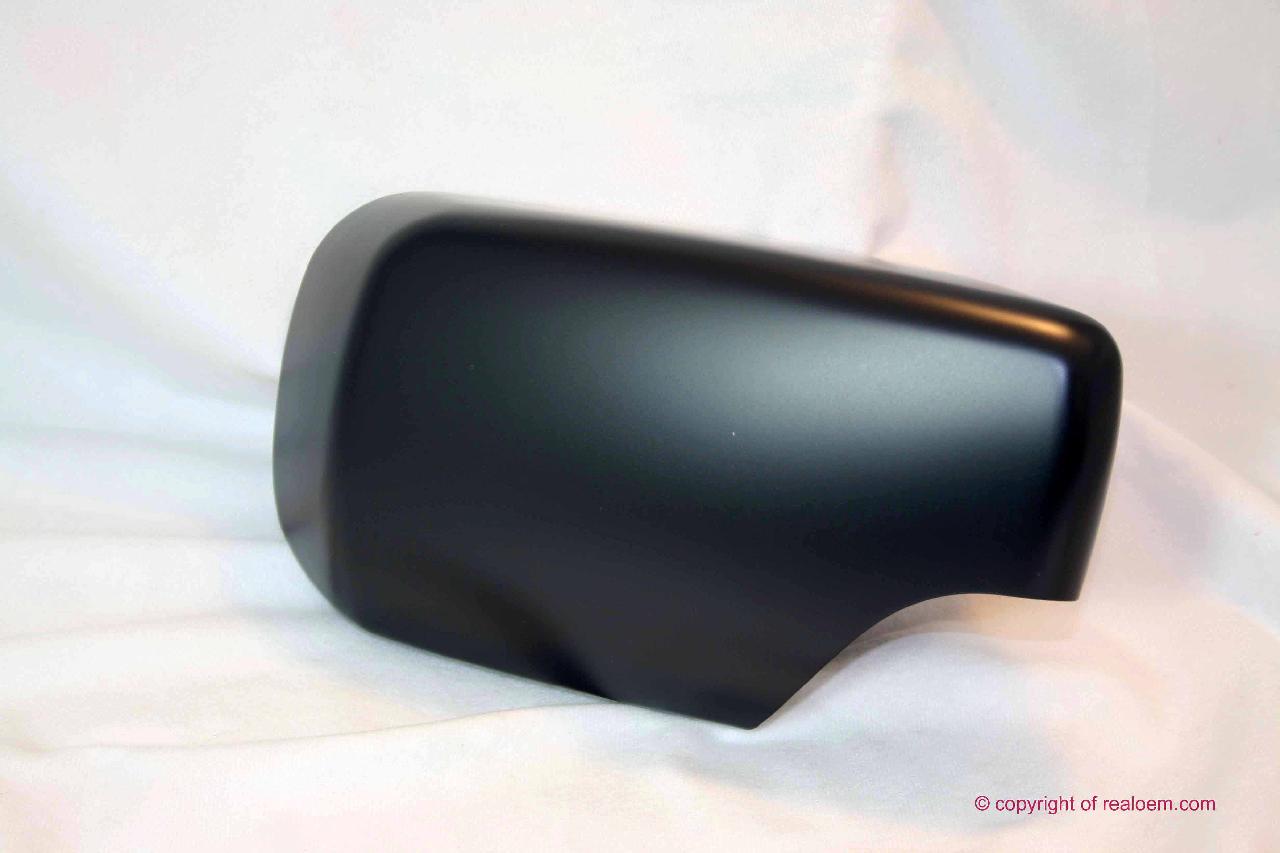

| 04 | Osłona gruntowana prawa | 1 | 09/1997 | 51168238376 | $48.89 | Shop at ECS Tuning | ||||
| 04 | Pokrywka lakierowana lewa | CODE - UNI/MET. | 1 | 09/1997 | 51169071286 | $171.41 | Zakończono | Shop at ECS Tuning | ||
| 04 | Pokrywka lakierowana prawa | CODE - UNI/MET. | 1 | 09/1997 | 51169071287 | $171.41 | Zakończono | Shop at ECS Tuning | ||
| 05 | Śruba torx | ISA M6X12 | 6 | 51211973382 | $0.66 | Shop at ECS Tuning | ||||
| 06 | Zest.napr. ramki lusterka zew. lewego | 1 | 09/1997 | 51168269025 | $35.93 | Shop at ECS Tuning | ||||
| 06 | Zest.napr. ramki lusterka zew. lewego | 1 | 09/1997 | 51168269026 | $35.93 | Shop at ECS Tuning | ||||
| pasuje tylko do mechaniki składania pasuje tylko do technol. elektrochrom. |
||||||||||
| 06 | Rama lewa | 1 | 51168213225 | $13.87 | Shop at ECS Tuning | |||||
| 06 | Rama prawa | 1 | 51168213226 | $13.87 | Shop at ECS Tuning | |||||
| 07 | Śruba | M3X8 | X | 51160024588 | $0.17 | Shop at ECS Tuning | ||||
| 08 | Uszczelka lewa | 1 | 51328163019 | $24.27 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Uszczelka prawa | 1 | 51328163020 | $24.27 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Zest.napr. napędu lewego | 1 | 67138375459 | $105.38 | Shop at ECS Tuning | |||||
| 09 | Zest.napr. napędu prawego | 1 | 67138375460 | $105.38 | Shop at ECS Tuning | |||||
| Dla samochodów z Memory |
=Tak |
|||||||||
| 09 | Zest.napr. napędu lust. lewego z pam. | 1 | 67138375457 | $188.25 | Shop at ECS Tuning | |||||
| 09 | Zest.napr. napędu lust. prawego z pam. | 1 | 67138375458 | $188.25 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
