Wspornik przedni for BMW 5 Series E39 520d

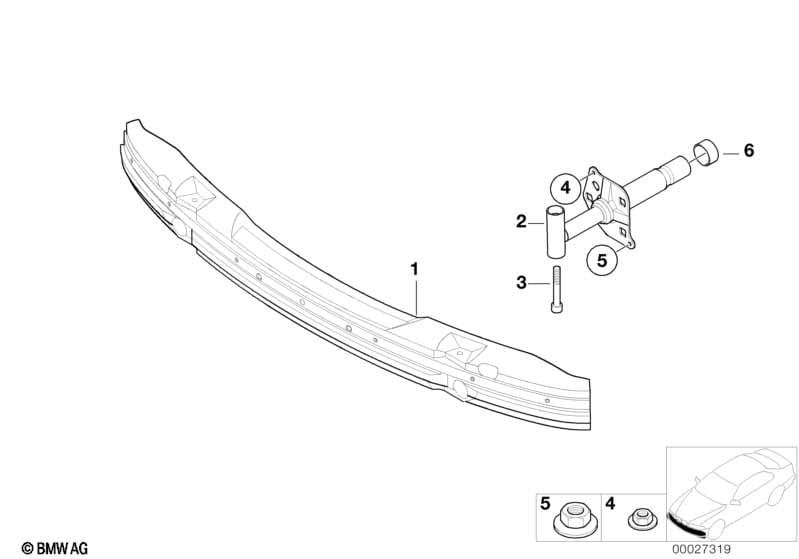

This Wspornik przedni technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wspornik | 1 | 51118245858 | $268.02 | Shop at ECS Tuning | |||||
| 02 | Amortyzator zderzaka przedniego, prawy | 1 | 51118159360 | $123.84 | +podst | Shop at ECS Tuning | ||||
| 03 | Śruba z łbem walcowym | 2 | 51118194679 | $1.95 | Shop at ECS Tuning | |||||
| 04 | Nakrętka z podkładką | M5 | 4 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 05 | Nakrętka z podkładką | M8 | 4 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Pokrywa pochł. energii zderz. | 2 | 51118162553 | $2.54 | Shop at ECS Tuning |
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 520d Wspornik przedni?
- This technical diagram illustrates the Wspornik przedni within the Wyposażenie pojazdu group for the 5 Series E39 520d. It provides a detailed exploded view of the components, identifying key parts such as the Wspornik (Part #51118245858).
- Which models use the hardware listed in this Wspornik przedni?
- The hardware and components featured in the Wspornik przedni are specific to the 5 Series E39 520d. These technical specifications ensure that parts like the Wspornik (51118245858) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wspornik przedni assembly?
- Each item in the Wspornik przedni corresponds to the numbered list below the illustration. For the 5 Series E39 520d, you can identify the Wspornik by locating its position on the schematic, which then links to the official BMW part number 51118245858 for the Wyposażenie pojazdu section.
