Wspornik tylny for BMW 5 Series E39 520d

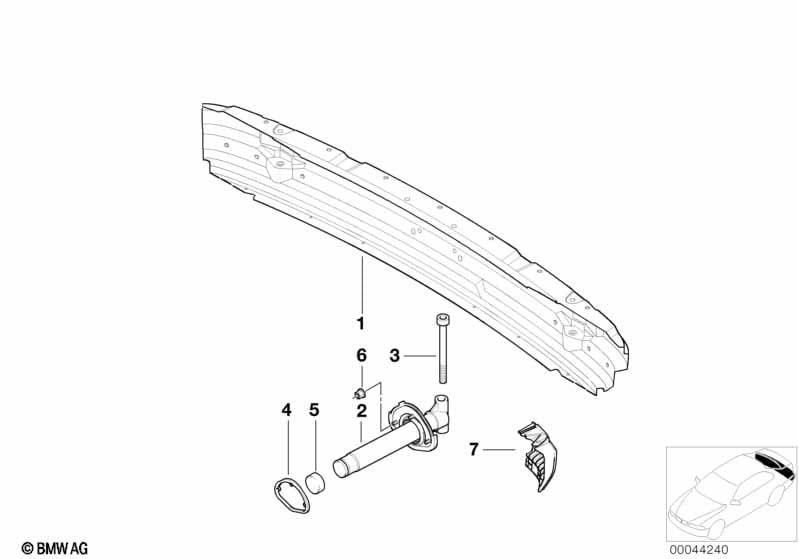

This Wspornik tylny technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wspornik | 1 | 51128159371 | $243.78 | Shop at ECS Tuning | |||||
| Dla samochodów z Hak holowniczy |
=Tak |
|||||||||
| 01 | Wspornik | 1 | 51128193200 | $243.78 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Pochł. energii zderz. tylny, lewy | 1 | 51128248031 | $122.28 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Pochł. energii zderz. tylny prawy | 1 | 51128248032 | $122.28 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Śruba sześciokątna | M10X110-8.8-ZN | 2 | 07119900518 | $1.39 | Shop at ECS Tuning | ||||
| 04 | Uszczelka | 2 | 51128157195 | $1.79 | Shop at ECS Tuning | |||||
| 05 | Pokrywa | 2 | 51121938266 | $0.57 | Shop at ECS Tuning | |||||
| 06 | Nakrętka z podkładką | M8 | 6 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Wkład lewy | 1 | 51128246077 | $3.95 | Shop at ECS Tuning | |||||
| 07 | Wkład prawy | 1 | 51128246078 | $3.95 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
