Przeszklenie elem. dod. for BMW 5 Series E39 520d

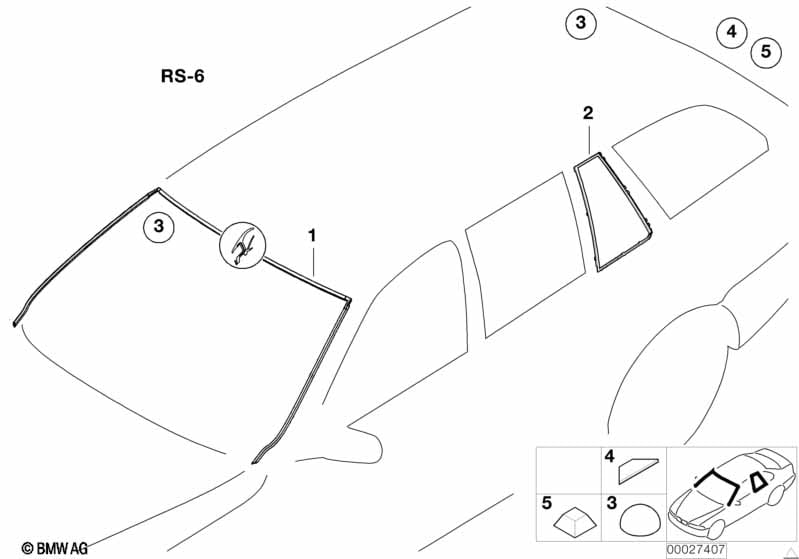

This Przeszklenie elem. dod. technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Osłona przedniej szyby | 1 | 51318159784 | $42.34 | Shop at ECS Tuning | |||||
| Dla samochodów z Oszklenie ochronne |
S357A=Tak |
|||||||||
| 01 | Osłona przedniej szyby | 1 | 51318172745 | $42.34 | Shop at ECS Tuning | |||||
| 02 | Rama lewa | 1 | 51348190649 | $12.07 | Shop at ECS Tuning | |||||
| 02 | Rama prawa | 1 | 51348190650 | $12.07 | Shop at ECS Tuning | |||||
| 03 | Odbojnik gumowy | D = 11.1 | 3 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| 04 | Taśma rzepowa | 8 | 51318216469 | $1.57 | Shop at ECS Tuning | |||||
| 05 | Odbojnik | 2 | 51318216471 | $0.68 | Shop at ECS Tuning | |||||
| 06 | Zestaw napr. do szyb, na zimno, 1 godz. | SET | 1 | 83192289285 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
