Lusterko zewnętrzne for BMW 5 Series E39 520d

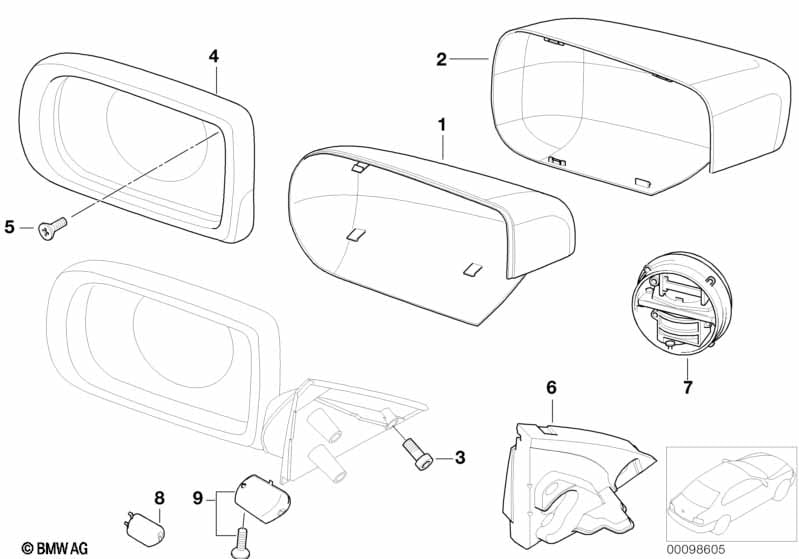

This Lusterko zewnętrzne technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520d. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| pasuje tylko do mechaniki składania pasuje tylko do technol. elektrochrom. |
||||||||||
| 01 | Pokrywka gruntowana lewa | 1 | 51168165115 | $65.98 | Shop at ECS Tuning | |||||
| 01 | Pokrywka gruntowana prawa | 1 | 51168165116 | $65.98 | Shop at ECS Tuning | |||||
| 01 | Pokrywka lakierowana lewa | CODE - UNI/MET. | 1 | 51169067424 | $188.16 | Zakończono | Shop at ECS Tuning | |||
| Przy zamawianiu podać kod koloru | ||||||||||
| 01 | Pokrywka lakierowana prawa | CODE - UNI/MET. | 1 | 51169067425 | $188.16 | Zakończono | Shop at ECS Tuning | |||
| Przy zamawianiu podać kod koloru | ||||||||||
| 02 | Pokrywka gruntowana lewa | 1 | 09/1997 | 51168202685 | $65.98 | Shop at ECS Tuning | ||||
| 02 | Pokrywka gruntowana prawa | 1 | 09/1997 | 51168202686 | $65.98 | Zakończono | Shop at ECS Tuning | |||
| 02 | Osłona gruntowana lewa | 1 | 09/1997 | 51168238375 | $48.89 | Shop at ECS Tuning | ||||
| 02 | Osłona gruntowana prawa | 1 | 09/1997 | 51168238376 | $48.89 | Shop at ECS Tuning | ||||
| 02 | Pokrywka lakierowana lewa | CODE - UNI/MET. | 1 | 09/1997 | 51169069102 | Zakończono, +podst | Shop at ECS Tuning | |||
| Przy zamawianiu podać kod koloru | ||||||||||
| 02 | Pokrywka lakierowana prawa | CODE - UNI/MET. | 1 | 09/1997 | 51169069104 | Zakończono, +podst | Shop at ECS Tuning | |||
| Przy zamawianiu podać kod koloru | ||||||||||
| 02 | Pokrywka lakierowana lewa | CODE - UNI/MET. | 1 | 09/1997 | 51169071286 | $171.41 | Zakończono | Shop at ECS Tuning | ||
| Przy zamawianiu podać kod koloru | ||||||||||
| 02 | Pokrywka lakierowana prawa | CODE - UNI/MET. | 1 | 09/1997 | 51169071287 | $171.41 | Zakończono | Shop at ECS Tuning | ||
| Przy zamawianiu podać kod koloru | ||||||||||
| 03 | Śruba z łbem walcowym | 6 | 07147196375 | $0.64 | Shop at ECS Tuning | |||||
| 03 | Śruba torx | ISA M6X12 | 6 | 51211973382 | $0.66 | Shop at ECS Tuning | ||||
| 04 | Zest.napr. ramki lusterka zew. lewego | 1 | 09/1997 | 51168269025 | $35.93 | Shop at ECS Tuning | ||||
| 04 | Zest.napr. ramki lusterka zew. lewego | 1 | 09/1997 | 51168269026 | $35.93 | Shop at ECS Tuning | ||||
| pasuje tylko do mechaniki składania pasuje tylko do Memory |
||||||||||
| 04 | Rama lewa | 1 | 51168213225 | $13.87 | Shop at ECS Tuning | |||||
| 04 | Rama prawa | 1 | 51168213226 | $13.87 | Shop at ECS Tuning | |||||
| 05 | Śruba | M3X8 | X | 51160024588 | $0.17 | Shop at ECS Tuning | ||||
| 06 | Uszczelka lewa | 1 | 51328163019 | $24.27 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Uszczelka prawa | 1 | 51328163020 | $24.27 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Zest.napr. napędu lewego | 1 | 67138375459 | $105.38 | Shop at ECS Tuning | |||||
| 07 | Zest.napr. napędu prawego | 1 | 67138375460 | $105.38 | Shop at ECS Tuning | |||||
| Dla samochodów z Memory |
=Tak |
|||||||||
| 07 | Zest.napr. napędu lust. lewego z pam. | 1 | 67138375457 | $188.25 | Shop at ECS Tuning | |||||
| 07 | Zest.napr. napędu lust. prawego z pam. | 1 | 67138375458 | $188.25 | Shop at ECS Tuning | |||||
| 08 | Pokrywa dolna lewa | 1 | 51167001035 | $7.72 | Shop at ECS Tuning | |||||
| 08 | Pokrywa dolna prawa | 1 | 51167001036 | $7.72 | Shop at ECS Tuning | |||||
| pasuje tylko do mechaniki składania pasuje tylko do technol. elektrochrom. |
||||||||||
| 09 | Pokrywa dolna lewa | 1 | 51167001037 | $1.82 | Shop at ECS Tuning | |||||
| 09 | Pokrywa dolna prawa | 1 | 51167001038 | $1.82 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 520d Lusterko zewnętrzne?
- This technical diagram illustrates the Lusterko zewnętrzne within the Wyposażenie pojazdu group for the 5 Series E39 520d. It provides a detailed exploded view of the components, identifying key parts such as the Pokrywka gruntowana lewa (Part #51168165115).
- Which models use the hardware listed in this Lusterko zewnętrzne?
- The hardware and components featured in the Lusterko zewnętrzne are specific to the 5 Series E39 520d. These technical specifications ensure that parts like the Pokrywka gruntowana lewa (51168165115) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Lusterko zewnętrzne assembly?
- Each item in the Lusterko zewnętrzne corresponds to the numbered list below the illustration. For the 5 Series E39 520d, you can identify the Pokrywka gruntowana lewa by locating its position on the schematic, which then links to the official BMW part number 51168165115 for the Wyposażenie pojazdu section.
