Obudowa słupka A / B / D, wewn. for BMW MINI R50 Cooper (2004)

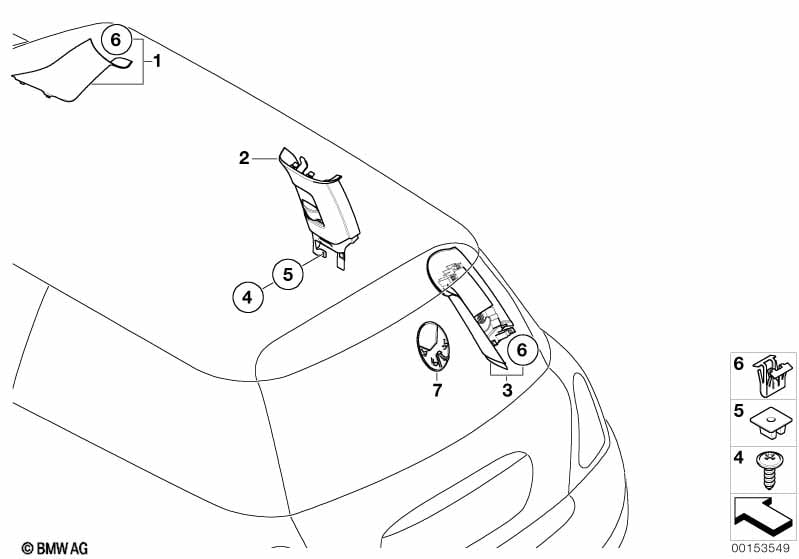

This Obudowa słupka A / B / D, wewn. technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Osłona słupka A, lewa | HORIZON GREY | 1 | 51437029461 | $25.62 | Shop at ECS Tuning | ||||
| 01 | Osłona słupka A, prawa | HORIZON GREY | 1 | 51437029462 | $25.62 | Shop at ECS Tuning | ||||
| Dla samochodów z Czołowa poduszka pow. ITS |
S262A=Tak |
|||||||||
| 01 | Osłona słupka A, lewa ITS | HORIZON GREY | 1 | 51437029459 | $34.95 | Shop at ECS Tuning | ||||
| 01 | Osłona słupka A, prawa ITS | HORIZON GREY | 1 | 51437029460 | $34.95 | Zakończono | Shop at ECS Tuning | |||
| 02 | Osłona słupka B, lewa | HORIZON GREY | 1 | 51437029451 | $49.08 | +podst | Shop at ECS Tuning | |||
| 02 | Osłona słupka B, prawa | HORIZON GREY | 1 | 51437029452 | $49.08 | Shop at ECS Tuning | ||||
| 03 | Osłona słupka D, lewa | HORIZON GREY | 1 | 51437029457 | $34.95 | Shop at ECS Tuning | ||||
| 03 | Osłona słupka D, prawa | HORIZON GREY | 1 | 51437029458 | $34.95 | Shop at ECS Tuning | ||||
| Dla samochodów z Czołowa poduszka pow. ITS |
S262A=Tak |
|||||||||
| 03 | Osłona słupka D, lewa ITS | HORIZON GREY | 1 | 51437029453 | $44.51 | Shop at ECS Tuning | ||||
| 03 | Osłona słupka D, prawa ITS | HORIZON GREY | 1 | 51437029454 | $44.51 | Zakończono | Shop at ECS Tuning | |||
| 04 | Wkręt samogwintujący | ST4,2X13MM | 4 | 07146977198 | $0.08 | Shop at ECS Tuning | ||||
| 05 | Nakrętka | D=8,5MM | 4 | 07130656754 | $0.29 | Shop at ECS Tuning | ||||
| Dla samochodów z Czołowa poduszka pow. ITS |
S262A=Nie |
|||||||||
| 06 | Zatrzask | 14 | 07130766476 | $0.66 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
