Wspornik przedni for BMW MINI R50 Cooper (2004)

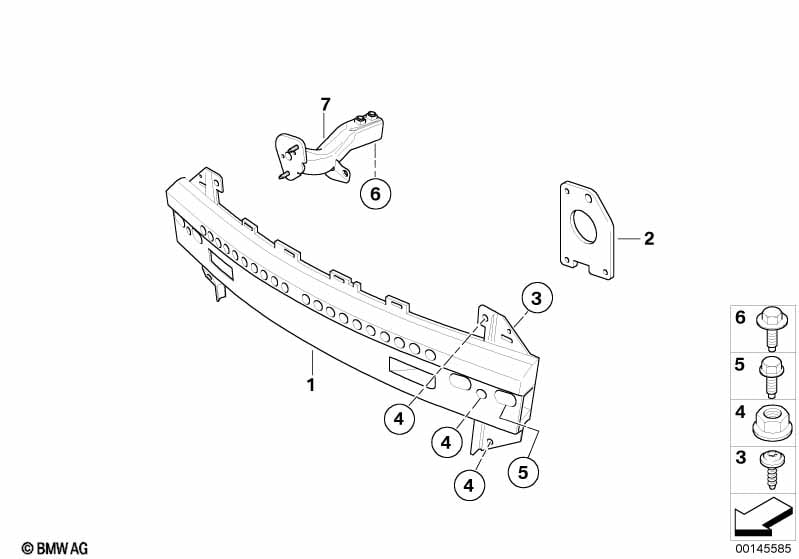

This Wspornik przedni technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wspornik zderzaka przedniego | 1 | 51111494431 | $212.12 | Shop at ECS Tuning | |||||
| 01 | Wspornik zderzaka przedni | 1 | 51115A5AC29 | Shop at ECS Tuning | ||||||
| Dla samochodów z Wersja krajowa Golf |
L822A=Tak |
|||||||||
| 01 | Wspornik zderzaka przedniego | US/GOLF | 1 | 07/2004 | 51117056709 | $296.95 | +podst | Shop at ECS Tuning | ||
| 02 | Płytki wyrównawcze | X | 51117053000 | $5.30 | Shop at ECS Tuning | |||||
| 03 | Śruba | M6X25 | 2 | 07146986089 | $0.45 | Shop at ECS Tuning | ||||
| 04 | Nakrętka z podkładką | M8 | 8 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Śruba sześciokątna z kołnierzem | M8 X 30 | 2 | 07136800199 | $1.25 | Zakończono | Shop at ECS Tuning | |||
| 05 | Śruba sześciokątna z kołnierzem | M8 X 30 | 2 | 07146986086 | $1.25 | Shop at ECS Tuning | ||||
| 06 | Śruba samogwintująca | M12X1,5X85-10.9 | 4 | 31106774713 | $3.23 | Shop at ECS Tuning | ||||
| 07 | Uchwyt wspornika zderzaka lewy | 1 | 31116757911 | $38.68 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| 07 | Uchwyt wspornika zderzaka prawy | 1 | 31116757912 | $38.68 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Śruba samogwintująca | M12X1,5X85-10.9 | 2 | 31106774713 | $3.23 | Shop at ECS Tuning | ||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
