Wspornik tylny for BMW MINI R50 Cooper (2004)

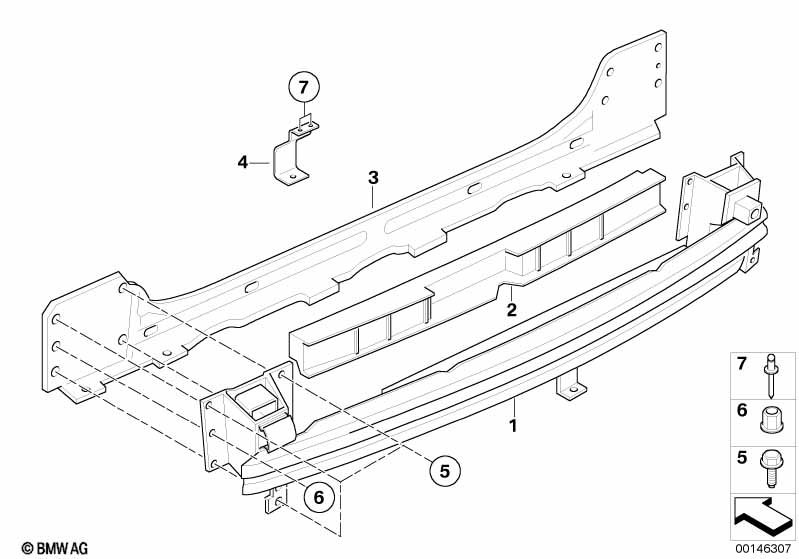

This Wspornik tylny technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wspornik zderzaka tylnego | 1 | 51127057403 | $270.65 | Zakończono | Shop at ECS Tuning | ||||
| 01 | Wspornik tylnego zderzaka | 1 | 51125A5AC30 | Shop at ECS Tuning | ||||||
| Dla samochodów z Wersja krajowa Korea |
L802A=Tak |
|||||||||
| 01 | Wspornik zderzaka tylnego | 1 | 51127120494 | $324.80 | +podst | Shop at ECS Tuning | ||||
| 02 | Absorber uderzenia, środkowy | 1 | 51127057484 | $76.87 | Shop at ECS Tuning | |||||
| 03 | Wzmocnienie konstr. tylnej | 1 | 51712758499 | $413.01 | Shop at ECS Tuning | |||||
| 04 | Uchwyt zderzaka, środkowy | 1 | 51127064205 | $13.98 | Shop at ECS Tuning | |||||
| 05 | Śruba sześciokątna | M8X30-10.9-ZNS3 | 8 | 31106760122 | $0.80 | Shop at ECS Tuning | ||||
| 06 | Nakrętka plast. sworznia z gwintem zgr. | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 07 | Kołek | 4-4A | 2 | 07129948750 | $0.21 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Wspornik tylny?
- This technical diagram illustrates the Wspornik tylny within the Wyposażenie pojazdu group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Wspornik zderzaka tylnego (Part #51127057403).
- Which models use the hardware listed in this Wspornik tylny?
- The hardware and components featured in the Wspornik tylny are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Wspornik zderzaka tylnego (51127057403) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wspornik tylny assembly?
- Each item in the Wspornik tylny corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Wspornik zderzaka tylnego by locating its position on the schematic, which then links to the official BMW part number 51127057403 for the Wyposażenie pojazdu section.
