Schowek przedni for BMW MINI R50 Cooper (2004)

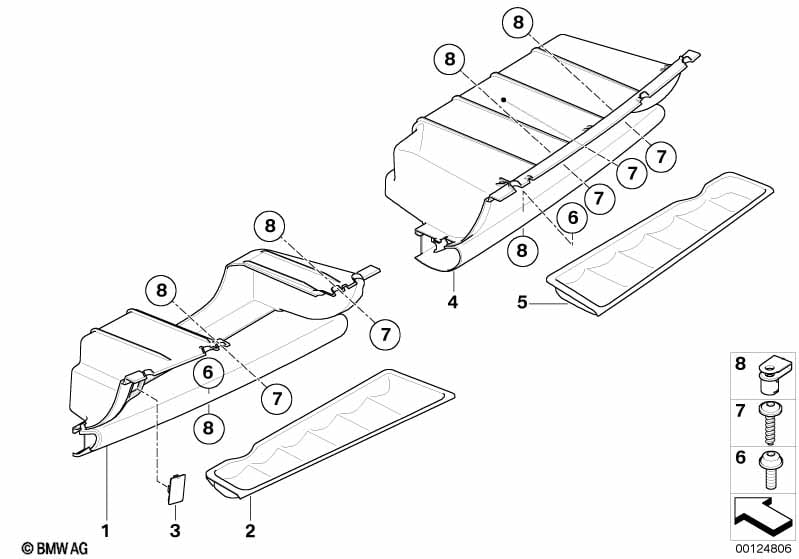

This Schowek przedni technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Zespół schowków |
S493A=Nie |
||||||||
| 01 | Schowek kierowcy | PANTHER BLACK | 1 | 51161186417 | $46.70 | +podst | Shop at ECS Tuning | |||
| 02 | Mata wkładana wnęki schowka kierowcy | PANTHER BLACK | 1 | 51167057375 | $41.73 | Shop at ECS Tuning | ||||
| Dla samochodów z Światło ksenonowe |
S522A=Tak |
|||||||||
| 03 | Zaślepka | 1 | 51457072009 | $3.38 | Shop at ECS Tuning | |||||
| 04 | Schowek pasażera | PANTHER BLACK | 1 | 51161186416 | +podst | Shop at ECS Tuning | ||||
| 05 | Mata wkładana wnęki schowka pasażera | PANTHER BLACK | 1 | 51167057377 | Shop at ECS Tuning | |||||
| 06 | Śruba | 2 | 07136800957 | $0.65 | Shop at ECS Tuning | |||||
| 07 | Śruba Torx do tworzyw sztucznych | TS5X20 | 5 | 07/2004 | 07119907480 | Shop at ECS Tuning | ||||
| 08 | Nakrętka z tworzywa sztucznego | M5 | 5 | 07131472727 | $0.47 | Shop at ECS Tuning | ||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Schowek przedni?
- This technical diagram illustrates the Schowek przedni within the Wyposażenie pojazdu group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Schowek kierowcy (Part #51161186417).
- Which models use the hardware listed in this Schowek przedni?
- The hardware and components featured in the Schowek przedni are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Schowek kierowcy (51161186417) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Schowek przedni assembly?
- Each item in the Schowek przedni corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Schowek kierowcy by locating its position on the schematic, which then links to the official BMW part number 51161186417 for the Wyposażenie pojazdu section.
