podsufitka for BMW MINI R50 Cooper (2004)

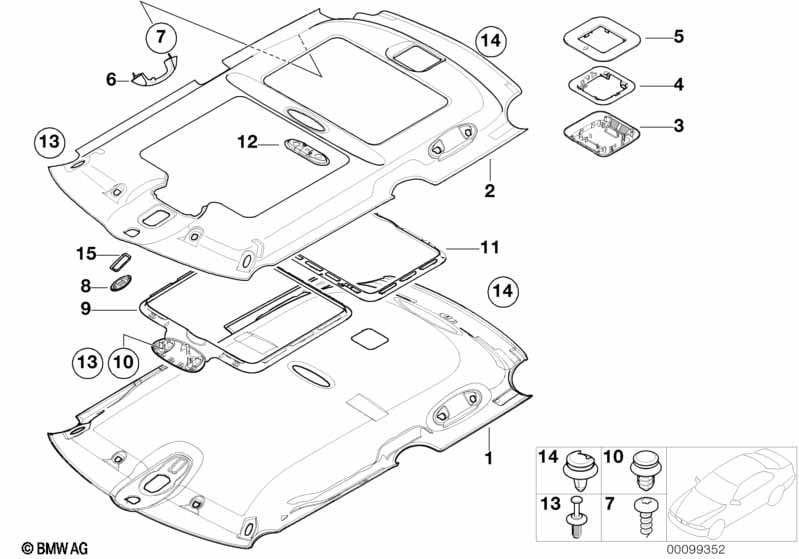

This podsufitka technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | podsufitka | HORIZON GREY | 1 | 07/2004 | 51441502587 | $350.13 | Zakończono | Shop at ECS Tuning | ||
| without cut-out Autoalarm i Urządzenie głośnomówiące |
||||||||||
| Dla samochodów z Instalacja pod montaż tel. uniwers. |
S640A=Tak |
|||||||||
| 01 | podsufitka | HORIZON GREY | 1 | 07/2004 | 51447053458 | $350.13 | Zakończono | Shop at ECS Tuning | ||
| Dla samochodów z Instalacja alarmowa i Instalacja pod montaż tel. uniwers. |
S302A=Tak S640A=Tak |
|||||||||
| 01 | podsufitka | HORIZON GREY | 1 | 07/2004 | 51447114578 | $350.13 | Zakończono | Shop at ECS Tuning | ||
| Dla samochodów z Instalacja alarmowa i Instalacja pod montaż tel. uniwers. |
S302A=Tak S640A=Nie |
|||||||||
| 01 | podsufitka | HORIZON GREY | 1 | 07/2004 | 51447114578 | $350.13 | Zakończono | Shop at ECS Tuning | ||
| tylko w połączeniu z | ||||||||||
| -- | Osłona mikrofonu | HORIZON GREY | 1 | 07/2004 | 51447036783 | $7.48 | Shop at ECS Tuning | |||
| Dla samochodów z Dach przesuwno-uchylny, elektryczny |
S403A=Tak |
|||||||||
| 02 | Podsufitka dachu przesuwno-uchylnego | HORIZON GREY | 1 | 07/2004 | 51441502589 | Zakończono | Shop at ECS Tuning | |||
| Dla samochodów z Instalacja alarmowa i Dach przesuwno-uchylny, elektryczny |
S302A=Tak S403A=Tak |
|||||||||
| 02 | Podsufitka dachu przesuwno-uchylnego | HORIZON GREY | 1 | 07/2004 | 51447114579 | $350.13 | Zakończono | Shop at ECS Tuning | ||
| Dla samochodów z Instalacja alarmowa |
S302A=Tak |
|||||||||
| 03 | Osłona ultradź. ochrony wnętrza | HORIZON GREY | 1 | 07/2004 | 51447053462 | $26.75 | Shop at ECS Tuning | |||
| 04 | Uchwyt modułu ultradźwięk., dolny | 1 | 07/2004 | 51448243665 | $5.33 | Zakończono | Shop at ECS Tuning | |||
| 05 | Uchwyt modułu ultradźwięk., górny | 1 | 07/2004 | 51448243666 | $9.59 | Zakończono | Shop at ECS Tuning | |||
| 06 | Uchwyt tylny lewy | HORIZON GREY | 1 | 07/2004 | 51447057481 | $5.38 | Zakończono | Shop at ECS Tuning | ||
| 06 | Uchwyt tylny prawy | HORIZON GREY | 1 | 07/2004 | 51447057482 | $5.38 | Zakończono | Shop at ECS Tuning | ||
| 07 | Blachowkręt soczewk. z pierśc. opor. | ST4,2X31 | 4 | 07/2004 | 07147136516 | $0.47 | Shop at ECS Tuning | |||
| 08 | Osłona mikrofonu | HORIZON GREY | 1 | 07/2004 | 51447036783 | $7.48 | Shop at ECS Tuning | |||
| Dla samochodów z Dach przesuwno-uchylny, elektryczny |
S403A=Tak |
|||||||||
| 08 | Osłona mikrofonu | PANTHER BLACK | 1 | 07/2004 | 51447136033 | $2.14 | Shop at ECS Tuning | |||
| 09 | Osłona podsufitki, przednia | 1 | 07/2004 | 51441511580 | $37.27 | Shop at ECS Tuning | ||||
| 10 | Zaczep | 3 | 07/2004 | 51447111066 | $1.37 | Shop at ECS Tuning | ||||
| Dla samochodów z Dach przesuwno-uchylny, elektryczny |
S403A=Tak |
|||||||||
| 11 | Osłona podsufitki, tylna | 1 | 07/2004 | 51441511581 | $32.08 | Shop at ECS Tuning | ||||
| 12 | Mocowanie oświetlenia wnętrza | 1 | 07/2004 | 51441503585 | $5.33 | Shop at ECS Tuning | ||||
| 13 | Nit rozprężny | D = 6MM | 1 | 07/2004 | 51111908077 | $0.30 | Shop at ECS Tuning | |||
| 14 | Zaczep, kolor. naturalny | 1 | 07/2004 | 51437001491 | $0.42 | Shop at ECS Tuning | ||||
| Dla samochodów z Instalacja pod montaż tel. uniwers. |
S640A=Tak |
|||||||||
| 15 | Rama metalowa | 1 | 07/2004 | 51447065105 | $5.33 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper podsufitka?
- This technical diagram illustrates the podsufitka within the Wyposażenie pojazdu group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the podsufitka (Part #51441502587).
- Which models use the hardware listed in this podsufitka?
- The hardware and components featured in the podsufitka are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the podsufitka (51441502587) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the podsufitka assembly?
- Each item in the podsufitka corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the podsufitka by locating its position on the schematic, which then links to the official BMW part number 51441502587 for the Wyposażenie pojazdu section.
