Półka tylna for BMW MINI R50 Cooper (2004)

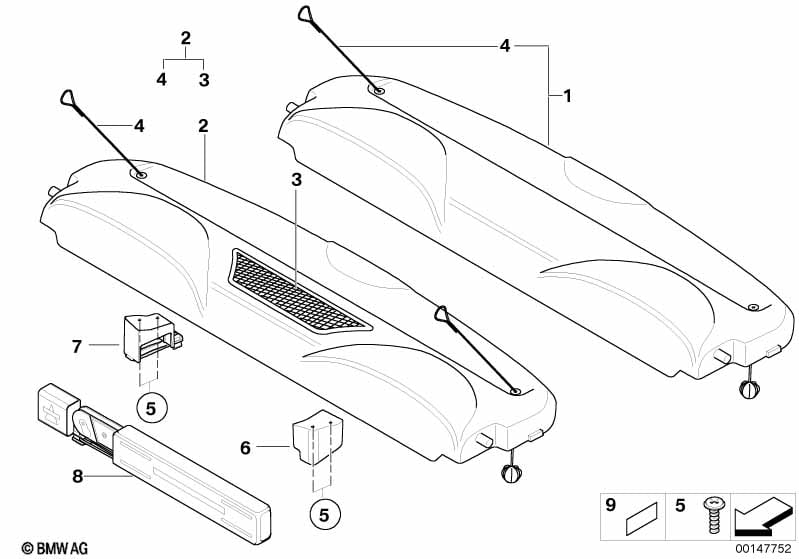

This Półka tylna technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Półka tylna | PANTHER BLACK | 1 | 51461514023 | $105.67 | Zakończono | Shop at ECS Tuning | |||
| 04 | Linka mocująca tylną półkę | 2 | 51467056788 | $3.47 | Shop at ECS Tuning | |||||
| Dla samochodów z Trójkąt ostrzegawczy i apteczka |
S428A=Tak |
|||||||||
| 05 | Śruba soczewkowa | 4X10 | 4 | 64111386955 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Uchwyt trójkąta ostrzegawczego | 1 | 51467059722 | $8.03 | Shop at ECS Tuning | |||||
| 07 | Uchwyt trójkąta ostrzegawczego | 1 | 51467059723 | $8.03 | Shop at ECS Tuning | |||||
| 08 | Trójkąt ostrzegawczy z pojemnikiem | ECE R27 | 1 | 71606770487 | Shop at ECS Tuning | |||||
| 09 | Element dystansowy samoprzylepny | 15X7X3,2MM | 2 | 51311925548 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Półka tylna?
- This technical diagram illustrates the Półka tylna within the Wyposażenie pojazdu group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Półka tylna (Part #51461514023).
- Which models use the hardware listed in this Półka tylna?
- The hardware and components featured in the Półka tylna are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Półka tylna (51461514023) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Półka tylna assembly?
- Each item in the Półka tylna corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Półka tylna by locating its position on the schematic, which then links to the official BMW part number 51461514023 for the Wyposażenie pojazdu section.
