Izolacja termiczna for BMW MINI R50 Cooper (2004)

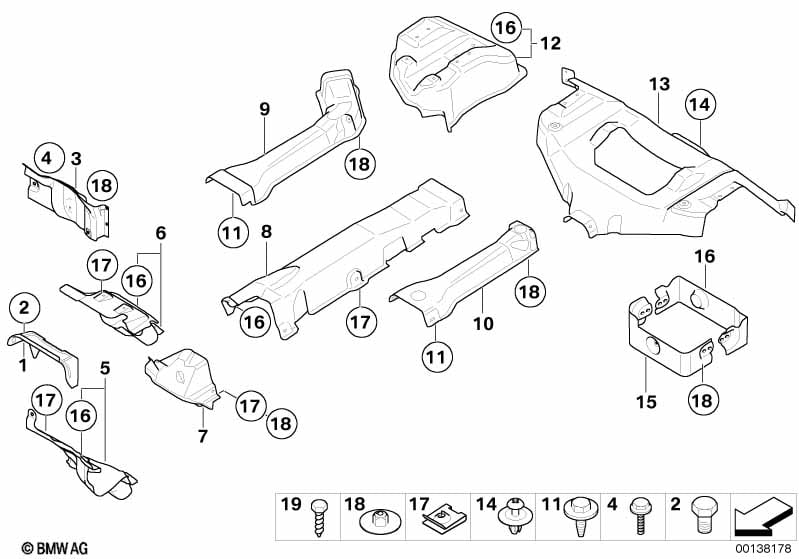

This Izolacja termiczna technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 06 | Blacha izol. ciepln. ściany grodziowej | 1 | 51487201452 | $22.60 | Shop at ECS Tuning | |||||
| 07 | Blacha izol. ciepln. linek przełącz. | 1 | 07/2004 | 51487053475 | $17.14 | Zakończono | Shop at ECS Tuning | |||
| Dla samochodów z Steptronic lub Automatyczna skrzynia biegów |
S202A=Tak S205A=Tak |
|||||||||
| 07 | Blacha izol. ciepln. linek przełącz. | 1 | 51487053476 | $17.14 | Shop at ECS Tuning | |||||
| 08 | Izolacja termiczna tunelu | 1 | 51487201454 | $56.70 | Shop at ECS Tuning | |||||
| 09 | Izolacja termiczna zbiornika paliwa | 1 | 51487124372 | $56.70 | Shop at ECS Tuning | |||||
| 11 | Śruba z podkładką | M6X20MM | 2 | 51712752359 | $1.34 | Shop at ECS Tuning | ||||
| 12 | Izolacja termiczna tłumika końcowego | 1 | 51487201451 | $90.90 | Shop at ECS Tuning | |||||
| 17 | Nakrętka | ST4,8-13-ZNS | 3 | 07/2007 | 07129901660 | $0.18 | Zakończono | Shop at ECS Tuning | ||
| 17 | Nakrętka | ST4,8-13-ZNS3 | 3 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 18 | Nakrętka | D=30MM, ZNS3 | 12 | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 19 | Blachowkręt | ST4,8X16-ZNS3 | 3 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Izolacja termiczna?
- This technical diagram illustrates the Izolacja termiczna within the Wyposażenie pojazdu group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Blacha izol. ciepln. ściany grodziowej (Part #51487201452).
- Which models use the hardware listed in this Izolacja termiczna?
- The hardware and components featured in the Izolacja termiczna are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Blacha izol. ciepln. ściany grodziowej (51487201452) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Izolacja termiczna assembly?
- Each item in the Izolacja termiczna corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Blacha izol. ciepln. ściany grodziowej by locating its position on the schematic, which then links to the official BMW part number 51487201452 for the Wyposażenie pojazdu section.
