Osłona podwozia, tylna for BMW MINI R50 Cooper (2004)

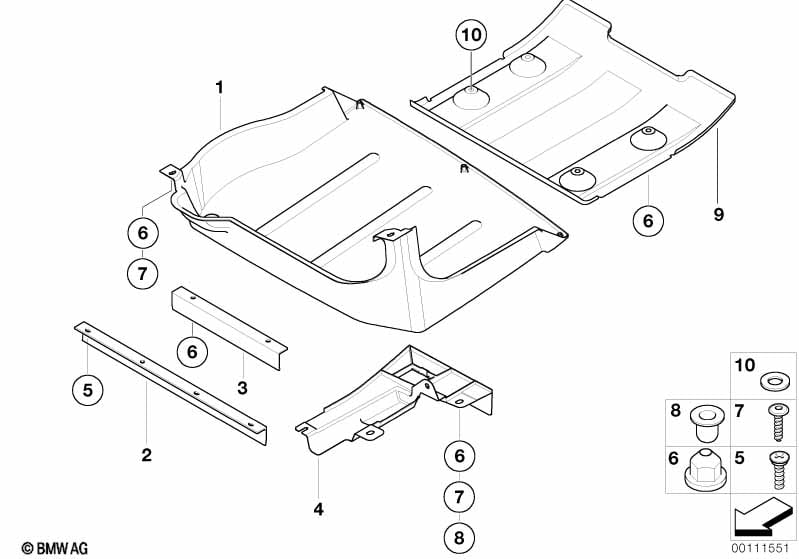

This Osłona podwozia, tylna technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Koło dojazdowe |
S300A=Nie |
|||||||||
| 01 | Osłona podwozia, tylna | 1 | 51711149159 | $46.06 | Shop at ECS Tuning | |||||
| 02 | Osłona dolna | 1 | 51711481428 | $12.17 | Shop at ECS Tuning | |||||
| 03 | Osłona dolna | 2 | 51711481429 | $11.75 | Shop at ECS Tuning | |||||
| 04 | Owiewka lewa | 1 | 51711502918 | $13.84 | Shop at ECS Tuning | |||||
| 04 | Owiewka prawa | 1 | 51757129682 | $13.84 | +podst | Shop at ECS Tuning | ||||
| 05 | Śruba samogwintująca | M6X16MM | 4 | 07131025735 | $1.05 | Shop at ECS Tuning | ||||
| 06 | Nakrętka z tworzywa szt. czarna | M5 | 8 | 07147221224 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Śruba soczewkowa | L=18MM | 5 | 07147146367 | $0.29 | Shop at ECS Tuning | ||||
| 08 | Końcówka | 2 | 07130578472 | $1.00 | Shop at ECS Tuning | |||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Osłona podwozia, tylna?
- This technical diagram illustrates the Osłona podwozia, tylna within the Wyposażenie pojazdu group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Osłona podwozia, tylna (Part #51711149159).
- Which models use the hardware listed in this Osłona podwozia, tylna?
- The hardware and components featured in the Osłona podwozia, tylna are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Osłona podwozia, tylna (51711149159) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Osłona podwozia, tylna assembly?
- Each item in the Osłona podwozia, tylna corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Osłona podwozia, tylna by locating its position on the schematic, which then links to the official BMW part number 51711149159 for the Wyposażenie pojazdu section.
