Wzmocnienie czołowe for BMW MINI R50 Cooper (2004)

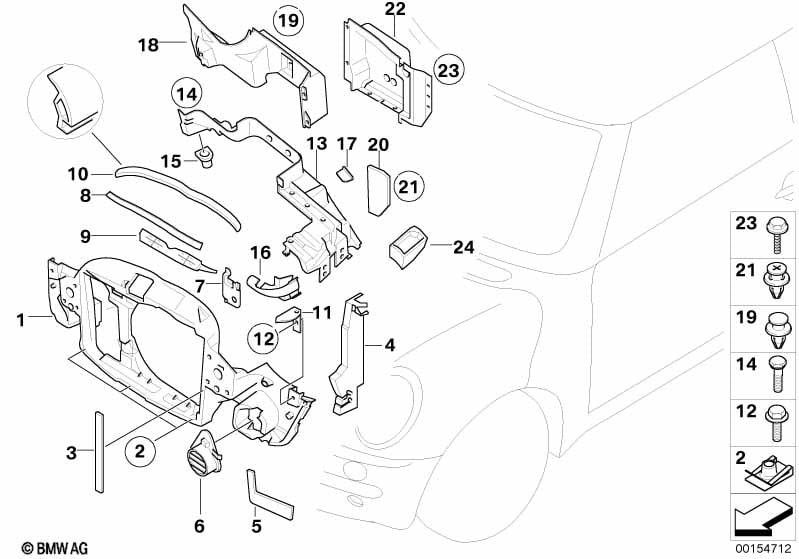

This Wzmocnienie czołowe technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wzmocnienie czołowe | 1 | 51647200799 | $268.63 | Shop at ECS Tuning | |||||
| 02 | Nakrętka | M6 | 3 | 07131496622 | $1.82 | Shop at ECS Tuning | ||||
| 03 | Uszczelka przedniej ścianki, prawa | 1 | 51717042998 | $4.41 | Shop at ECS Tuning | |||||
| 03 | Uszczelka przedniej ścianki, lewa | 1 | 51717043013 | Shop at ECS Tuning | ||||||
| Dla samochodów z Klimatyzacja lub Klimatyzacja automatyczna |
S530A=Tak S534A=Tak |
|||||||||
| 03 | Uszczelka przedniej ścianki, lewa | 1 | 51717042997 | $4.41 | Shop at ECS Tuning | |||||
| Dla samochodów z Automatyczna skrzynia biegów i Klimatyzacja i Klimatyzacja automatyczna |
S205A=Tak S530A=Tak S534A=Nie |
|||||||||
| 03 | Uszczelka przedniej ścianki, lewa | 1 | 51647042999 | $4.41 | Shop at ECS Tuning | |||||
| Dla samochodów z Automatyczna skrzynia biegów i Klimatyzacja i Klimatyzacja automatyczna |
S205A=Tak S530A=Nie S534A=Tak |
|||||||||
| 03 | Uszczelka przedniej ścianki, lewa | 1 | 51647042999 | $4.41 | Shop at ECS Tuning | |||||
| Dla samochodów z Lampa przeciwmgłowa |
S520A=Nie |
|||||||||
| 06 | Osłona lampy przeciwmg. prawej | 1 | 51711481435 | $16.85 | Shop at ECS Tuning | |||||
| 06 | Osłona lampy przeciwmg. lewej | 1 | 51711481436 | $16.85 | Shop at ECS Tuning | |||||
| 10 | Uszczelka pokrywy silnika, przednia | L=1020MM | 1 | 51711514688 | $27.71 | Shop at ECS Tuning | ||||
| 11 | Mount, bumper left and right | 1 | 51717039262 | $22.47 | Shop at ECS Tuning | |||||
| 12 | Śruba z podkładką | M6X25 | 2 | 07147117693 | $1.09 | Shop at ECS Tuning | ||||
| 13 | Podstawa pod akumulator | 1 | 51717044209 | $115.46 | Shop at ECS Tuning | |||||
| 14 | Śruba z podkładką | M8X21 | 8 | 07146986090 | $0.80 | Shop at ECS Tuning | ||||
| 15 | Tulejka odpływu wody | 2 | 51717044713 | $5.27 | Shop at ECS Tuning | |||||
| 16 | Zatrzask przewodu | 1 | 32416757963 | $1.35 | Shop at ECS Tuning | |||||
| 17 | Końcówka gumowa | 1 | 34306758401 | $2.62 | Shop at ECS Tuning | |||||
| 18 | Ścianka dział. prawa | 1 | 51717148792 | $35.37 | Shop at ECS Tuning | |||||
| 19 | Nit rozprężny | 1 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 20 | Ścianka dział. lewa | 1 | 51717044211 | $23.98 | Shop at ECS Tuning | |||||
| 21 | Nit rozprężny | 1 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 24 | Wkładka lewa | 1 | 51717044241 | $12.78 | Shop at ECS Tuning | |||||
| 24 | Wkładka prawa | 1 | 51717044242 | $12.78 | Shop at ECS Tuning | |||||
