Pokrywka zamykająca/Korek zamykający for BMW MINI R50 Cooper (2004)

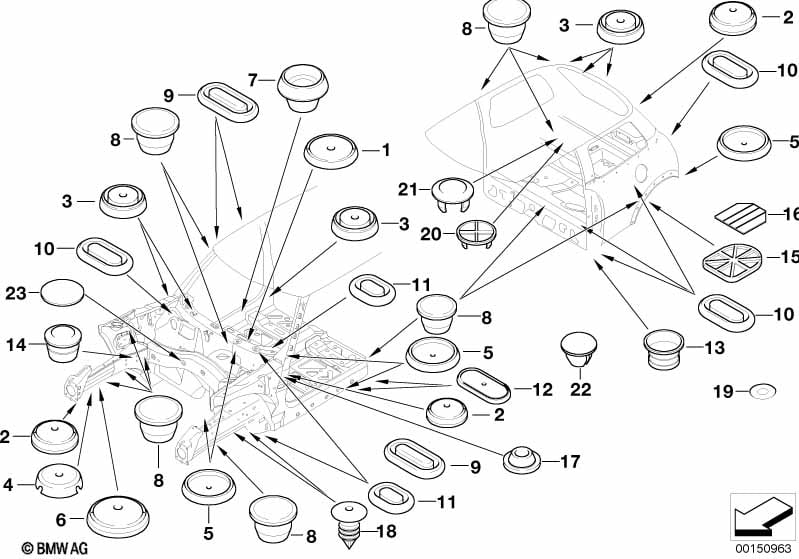

This Pokrywka zamykająca/Korek zamykający technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = średnica otworu w nadwoziu |
|||||||||
| Dla samochodów z Automatyczna skrzynia biegów |
S205A=Tak |
|||||||||
| 01 | Zaślepka | D=35MM | 1 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| Dla samochodów z Dach przesuwno-uchylny, elektryczny |
S403A=Nie |
|||||||||
| 01 | Zaślepka | D=35MM | 2 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 02 | Zaślepka | D=20MM | 13 | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 03 | Zaślepka | D=18MM | 20 | 07130687653 | $0.45 | Shop at ECS Tuning | ||||
| 04 | Zaślepka | D=20MM | 2 | 51718174490 | $0.56 | Shop at ECS Tuning | ||||
| 05 | Zaślepka | D=25MM | 23 | 51718126605 | $0.39 | Shop at ECS Tuning | ||||
| 06 | Zaślepka | D=30MM | 1 | 07/2004 | 51718168260 | $0.50 | Shop at ECS Tuning | |||
| 07 | Zaślepka | D=9,70MM | 4 | 51718235734 | $0.32 | Shop at ECS Tuning | ||||
| 08 | Zaślepka | D=12MM | 44 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Zaślepka | 12X18MM | 26 | 51710588793 | $0.79 | Shop at ECS Tuning | ||||
| 10 | Zaślepka | 18X24MM | 11 | 51710588794 | $0.85 | Shop at ECS Tuning | ||||
| 11 | Zaślepka | 25X30MM | 7 | 07149193300 | $0.59 | Shop at ECS Tuning | ||||
| 12 | Zaślepka | 50X90MM | 4 | 51717036152 | $2.56 | Shop at ECS Tuning | ||||
| 13 | Zaślepka | D=18MM | 26 | 51718222691 | $0.32 | Shop at ECS Tuning | ||||
| 14 | Zaślepka | D=7MM | 3 | 07147135667 | $0.26 | Shop at ECS Tuning | ||||
| Dla samochodów z Koło dojazdowe |
S300A=Nie |
|||||||||
| 15 | Zaślepka | 42X41,5MM | 1 | 51711507300 | $2.56 | Shop at ECS Tuning | ||||
| 16 | Taśma samoprzylepna | 40X40MM | 28 | 51717159180 | $0.73 | Zakończono | Shop at ECS Tuning | |||
| 17 | Tulejka uszczelniająca | D=20MM | 2 | 51717036220 | $1.87 | Shop at ECS Tuning | ||||
| 18 | Zaślepka | D=10,10MM | 8 | 51717056053 | $0.47 | Shop at ECS Tuning | ||||
| 19 | Folia uszczelniająca | PUR, D=30MM | 33 | 51711922189 | $0.82 | Shop at ECS Tuning | ||||
| 22 | Zaślepka | D=6,5MM | 3 | 51718407016 | $0.18 | Shop at ECS Tuning | ||||
| 23 | Podkładka uszczelniająca | D=30MM | 3 | 07147128618 | $0.87 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Pokrywka zamykająca/Korek zamykający?
- This technical diagram illustrates the Pokrywka zamykająca/Korek zamykający within the Wyposażenie pojazdu group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Zaślepka (Part #07147140849).
- Which models use the hardware listed in this Pokrywka zamykająca/Korek zamykający?
- The hardware and components featured in the Pokrywka zamykająca/Korek zamykający are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Zaślepka (07147140849) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pokrywka zamykająca/Korek zamykający assembly?
- Each item in the Pokrywka zamykająca/Korek zamykający corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Zaślepka by locating its position on the schematic, which then links to the official BMW part number 07147140849 for the Wyposażenie pojazdu section.
