Obudowa wnęki koła for BMW MINI R50 Cooper (2004)

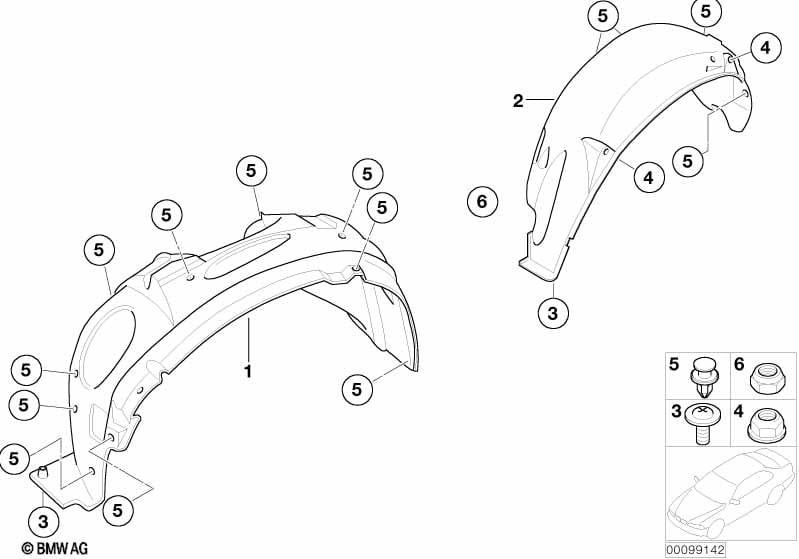

This Obudowa wnęki koła technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Osłona wnęki koła, przednia prawa | 1 | 07/2004 | 51711486197 | $72.63 | Shop at ECS Tuning | ||||
| 01 | Osłona wnęki koła, przednia lewa | 1 | 07/2004 | 51711486198 | $72.63 | Shop at ECS Tuning | ||||
| 02 | Osłona nadkola, tylna, prawa | 1 | 07/2004 | 51711486199 | $72.63 | Shop at ECS Tuning | ||||
| 02 | Osłona wnęki koła, tylna lewa | 1 | 07/2004 | 51711486200 | $72.63 | Shop at ECS Tuning | ||||
| 03 | Śruba soczewkowa | L=18MM | 4 | 07/2004 | 07147146367 | $0.29 | Shop at ECS Tuning | |||
| 04 | Nakrętka | M5 | 4 | 07/2004 | 51711934930 | $0.23 | Shop at ECS Tuning | |||
| 05 | Nit rozprężny | 24 | 07/2004 | 07130702966 | $0.48 | Shop at ECS Tuning | ||||
| 06 | Nakrętka samokontrująca | 4 | 07/2004 | 07136800301 | $0.36 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Obudowa wnęki koła?
- This technical diagram illustrates the Obudowa wnęki koła within the Wyposażenie pojazdu group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Osłona wnęki koła, przednia prawa (Part #51711486197).
- Which models use the hardware listed in this Obudowa wnęki koła?
- The hardware and components featured in the Obudowa wnęki koła are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Osłona wnęki koła, przednia prawa (51711486197) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Obudowa wnęki koła assembly?
- Each item in the Obudowa wnęki koła corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Osłona wnęki koła, przednia prawa by locating its position on the schematic, which then links to the official BMW part number 51711486197 for the Wyposażenie pojazdu section.
