Schowek w konsoli środkowej for BMW 7 Series E65 745i (2003)

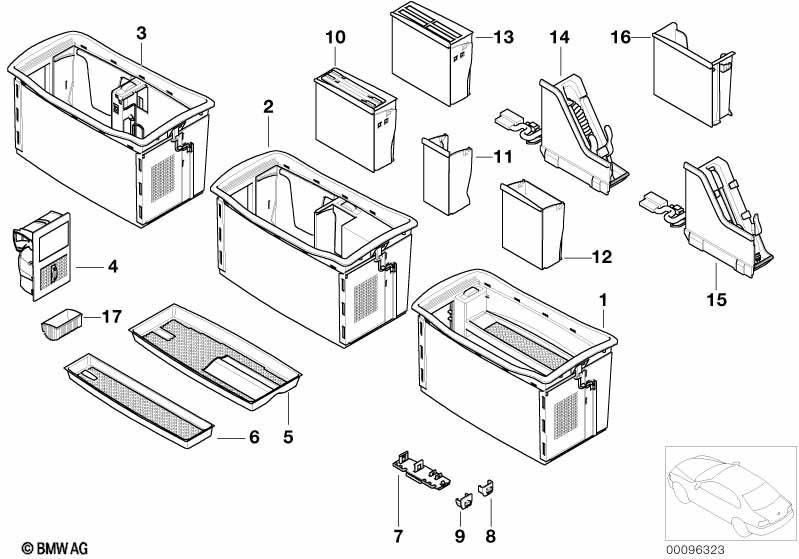

This Schowek w konsoli środkowej technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Schowek na tel. kom. w podłok. środk. | 1 | 03/2005 | 51167042555 | $219.70 | Shop at ECS Tuning | ||||
| 04 | Skrzynka na monety | 1 | 03/2005 | 51167011612 | $51.26 | Zakończono | Shop at ECS Tuning | |||
| 05 | Mata wkładana | 1 | 03/2005 | 51167011610 | $20.97 | Shop at ECS Tuning | ||||
| 06 | Mata wkładana | 1 | 03/2005 | 51167011616 | $12.50 | Shop at ECS Tuning | ||||
| 07 | Uchwyt schowka | 1 | 03/2005 | 61136912201 | $2.78 | Zakończono | Shop at ECS Tuning | |||
| 09 | Uchwyt obudowy wtyczki | 1 | 03/2005 | 84216914050 | $2.83 | Shop at ECS Tuning | ||||
| 10 | Schowek na płyty CD | 1 | 03/2005 | 51167011621 | $82.50 | Zakończono, +podst | Shop at ECS Tuning | |||
| 13 | Pojemnik na kasety | 1 | 03/2005 | 51167017806 | $82.50 | Zakończono, +podst | Shop at ECS Tuning | |||
| 14 | Mocowanie na telefon komórkowy | 1 | 03/2003 | 03/2005 | 84216944026 | $219.24 | Zakończono | Shop at ECS Tuning | ||
| 16 | Wnęka podłokietnika środkowego | 1 | 03/2005 | 51167011617 | $32.11 | Zakończono | Shop at ECS Tuning | |||
| 17 | Pojemnik na monety | 1 | 03/2005 | 51167011613 | $22.76 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
