Wspornik funkc. drzwi tylna for BMW 7 Series E65 745i (2003)

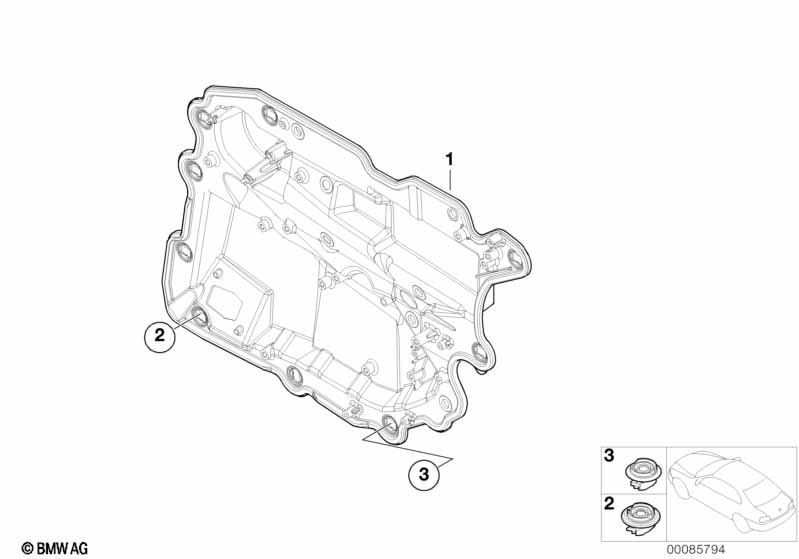

This Wspornik funkc. drzwi tylna technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Wspornik funkc. drzwi tylna
Nr. Opis Uzupełnienie Ilość  Od   Do  Numer części Cena Uwagi
01 Wspornik drzwi tylny lewy 1 03/2005 51427181061 $151.51 Shop at ECS Tuning
01 Wspornik drzwi tylny prawy 1 03/2005 51427181062 $151.51 Shop at ECS Tuning
Dla samochodów z
Roleta przeciwsłoneczna tylna /boczna

S416A=Tak
01 Wspornik drzwi tylny lewy 1 03/2005 51427181063 $151.51 Zakończono Shop at ECS Tuning
01 Wspornik drzwi tylny prawy 1 03/2005 51427181064 $151.51 Shop at ECS Tuning
02 Szybkozłącze 1,8MM X 03/2005 51417026270 $3.66 Shop at ECS Tuning
03 Szybkozłącze 0,8MM X 03/2005 51417007118 $3.66 Shop at ECS Tuning
Uwagi
  • Zakończono = część wycofana z produkcji.

See Also

Frequently Asked Questions

What assembly is shown in the BMW 7 Series E65 745i Wspornik funkc. drzwi tylna?
This technical diagram illustrates the Wspornik funkc. drzwi tylna within the Wyposażenie pojazdu group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Wspornik drzwi tylny lewy (Part #51427181061).
Which models use the hardware listed in this Wspornik funkc. drzwi tylna?
The hardware and components featured in the Wspornik funkc. drzwi tylna are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Wspornik drzwi tylny lewy (51427181061) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Wspornik funkc. drzwi tylna assembly?
Each item in the Wspornik funkc. drzwi tylna corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Wspornik drzwi tylny lewy by locating its position on the schematic, which then links to the official BMW part number 51427181061 for the Wyposażenie pojazdu section.
