Tapicerka deski rozdzielczej for BMW MINI R50 Cooper (2004)

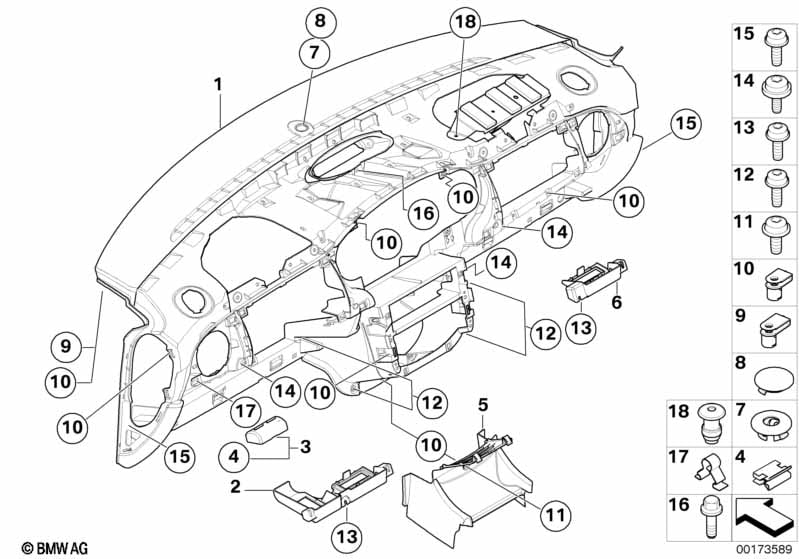

This Tapicerka deski rozdzielczej technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Instrument panel, bottom section | PANTHER BLACK | 1 | 05/2003 | 07/2004 | 51457128609 | $476.41 | Shop at ECS Tuning | ||
| 02 | Uchwyt OBD przy podł. po str. kierowcy | 1 | 04/2003 | 07/2004 | 51457128518 | $5.35 | Shop at ECS Tuning | |||
| Dla samochodów z Zespół schowków |
S493A=Tak |
|||||||||
| 03 | Osłona podświetlenia przy podłodze | 1 | 09/2002 | 07/2004 | 51458166683 | $4.60 | Shop at ECS Tuning | |||
| 04 | Klamra | 1 | 09/2002 | 07/2004 | 07149143792 | $0.57 | Shop at ECS Tuning | |||
| 05 | Wnęka z przodu | 1 | 07/2004 | 51167121738 | $10.79 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Mata wkładana wnęki schowka przednia | 1 | 07/2004 | 51167125693 | $5.40 | Shop at ECS Tuning | ||||
| Dla samochodów z Klimatyzacja automatyczna |
S534A=Tak |
|||||||||
| 07 | Mocowanie czujnika słonecznego | PANTHER BLACK | 1 | 07/2004 | 51457036179 | $11.98 | Shop at ECS Tuning | |||
| 08 | Osłona wyc. na czujnik słon. | PANTHER BLACK | 1 | 07/2004 | 51457036178 | $11.78 | Shop at ECS Tuning | |||
| 09 | Nakrętka z tworzywa sztucznego | 3 | 07/2004 | 07131181778 | $1.00 | Shop at ECS Tuning | ||||
| 10 | Nakrętka z tworzywa sztucznego | M5 | 15 | 07/2004 | 07131472727 | $0.47 | Shop at ECS Tuning | |||
| 11 | Śruba soczewkowa | 5X14 | 1 | 07/2004 | 07149149273 | $0.56 | Shop at ECS Tuning | |||
| 12 | Śruba | 4 | 07/2004 | 07136800957 | $0.65 | Shop at ECS Tuning | ||||
| 13 | Śruba Torx do tworzyw sztucznych | TS5X20 | 5 | 07/2004 | 07119907480 | Shop at ECS Tuning | ||||
| 14 | Śruba samogwintująca | M5X16MM | 8 | 07/2004 | 51451513635 | $0.86 | Shop at ECS Tuning | |||
| 15 | Śruba torx | 2 | 07/2004 | 07131143390 | $1.16 | Shop at ECS Tuning | ||||
| 16 | Śruba kołnierzowa | M6X20MM | 2 | 07/2004 | 07130782523 | $0.38 | Shop at ECS Tuning | |||
| 17 | Zaczep sprężynowy | 2 | 07/2004 | 51167072533 | $0.95 | Shop at ECS Tuning | ||||
| 18 | Nit | 4,7X24,6 | 5 | 07/2004 | 07147111798 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Tapicerka deski rozdzielczej?
- This technical diagram illustrates the Tapicerka deski rozdzielczej within the Wyposażenie pojazdu group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Instrument panel, bottom section (Part #51457128609).
- Which models use the hardware listed in this Tapicerka deski rozdzielczej?
- The hardware and components featured in the Tapicerka deski rozdzielczej are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Instrument panel, bottom section (51457128609) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tapicerka deski rozdzielczej assembly?
- Each item in the Tapicerka deski rozdzielczej corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Instrument panel, bottom section by locating its position on the schematic, which then links to the official BMW part number 51457128609 for the Wyposażenie pojazdu section.
