Przeszklenie elem. dod. for BMW 7 Series E65 745i (2003)

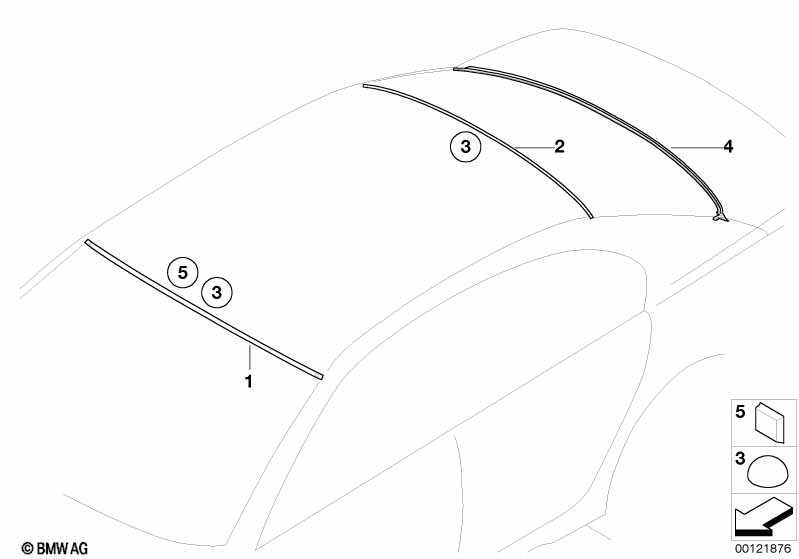

This Przeszklenie elem. dod. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Osłona przedniej szyby, góra | 1 | 51317172022 | $32.92 | +podst | Shop at ECS Tuning | ||||
| 02 | Osłona tylnej szyby, górna | 1 | 51318223846 | $41.68 | Shop at ECS Tuning | |||||
| 03 | Odbojnik gumowy | D = 11.1 | 6 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
| 04 | Osłona tylnej szyby, dolna | 1 | 51717033257 | $46.36 | Shop at ECS Tuning | |||||
| 05 | Element dystansowy samoprzylepny | 12.7X10X3.8 | 5 | 51318172242 | $0.58 | Shop at ECS Tuning |
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
