Elementy dod. tablicy przyrządów for BMW 7 Series E65 745i (2003)

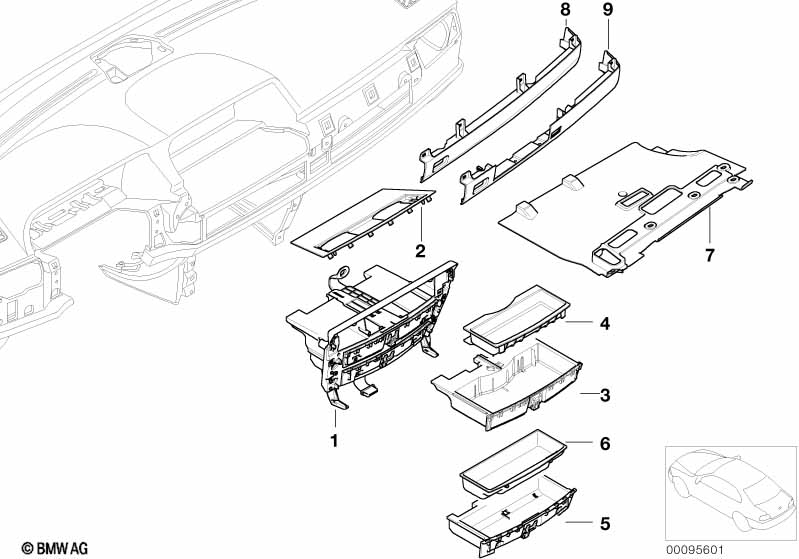

This Elementy dod. tablicy przyrządów technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wspornik funkcyjny tablicy przyrządów | 1 | 51458261060 | $390.48 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Osłona monitora centralnego | SCHWARZ | 1 | 51457018228 | $16.65 | Shop at ECS Tuning | ||||
| 03 | Szuflada telefonu | SCHWARZ | 1 | 51458251192 | $34.19 | Shop at ECS Tuning | ||||
| 04 | Wnęka na telefon | 1 | 51457007939 | $18.17 | Shop at ECS Tuning | |||||
| 05 | Szuflada dolna | SCHWARZ | 1 | 51458261058 | $34.19 | Shop at ECS Tuning | ||||
| 06 | Schowek | SCHWARZ | 1 | 51457007940 | $18.17 | Shop at ECS Tuning | ||||
| 07 | Obudowa przypodłogowa prawa | SCHWARZ | 1 | 03/2005 | 51457045014 | $37.69 | Zakończono | Shop at ECS Tuning | ||
| 08 | Osłona tabl. przyrz., prawa | DARK SILVER | 1 | 03/2005 | 51457007334 | $49.08 | Zakończono | Shop at ECS Tuning | ||
| Dla samochodów z Zmieniarka CD na 6 płyt CD |
S672A=Tak |
|||||||||
| 09 | Osłona tabl. przyrz., prawa | DARK SILVER | 1 | 03/2005 | 51457018959 | $49.29 | Shop at ECS Tuning | |||
Uwagi
- Zakończono = część wycofana z produkcji.
