Obudowa z elem. ozdobnymi, przednia for BMW 7 Series E65 745i (2003)

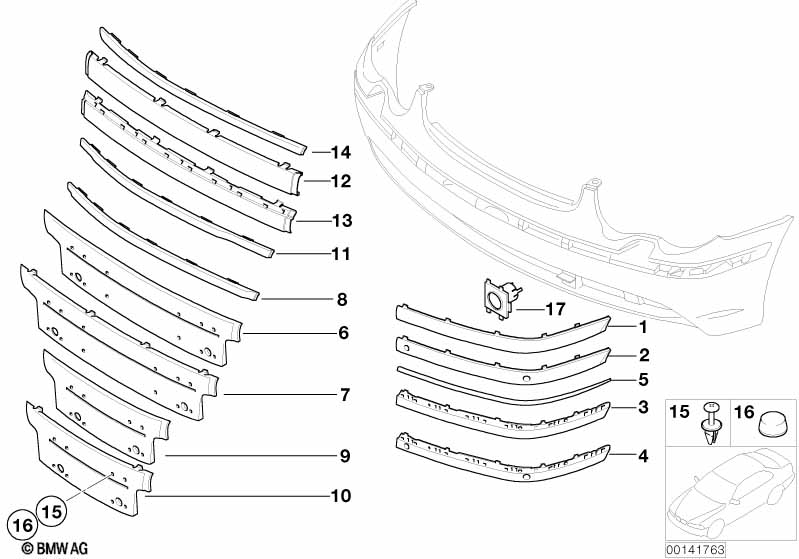

This Obudowa z elem. ozdobnymi, przednia technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | List. zderz. gruntow. przed. lewa | 1 | 03/2005 | 51117043463 | $23.45 | Shop at ECS Tuning | ||||
| 01 | List. zderz. gruntow. przed. prawa | 1 | 03/2005 | 51117043464 | $23.45 | Shop at ECS Tuning | ||||
| Dla samochodów z Park Distance Control (PDC) |
S508A=Tak |
|||||||||
| 02 | List. zderz. gruntow. przed. lewa | PDC | 1 | 03/2005 | 51117043457 | $25.98 | Shop at ECS Tuning | |||
| 02 | List. zderz. gruntow. przed. prawa | PDC | 1 | 03/2005 | 51117043458 | $25.98 | Shop at ECS Tuning | |||
| 09 | Podkładka tabl. rejestr. gruntowana | 1 | 03/2005 | 51117043453 | $99.45 | Shop at ECS Tuning | ||||
| 12 | Listwa zderzakowa środkowa gruntowana | 1 | 03/2005 | 51117043455 | $29.13 | Shop at ECS Tuning | ||||
| 15 | Wkręt do tworz. szt. | TS 5X13 | 4 | 03/2005 | 07146959892 | $0.30 | Shop at ECS Tuning | |||
| 15 | Wkręt do tworz. szt. | TS5X25-ZNNID-SW | 2 | 03/2005 | 07146959925 | $0.29 | Shop at ECS Tuning | |||
| 15 | Śruba soczewkowa | TS5X20 | 2 | 03/2005 | 07146986938 | $0.45 | Shop at ECS Tuning | |||
| 16 | Pokrywka | WEISS | 4 | 03/2005 | 51181813017 | $0.21 | Shop at ECS Tuning | |||
| Dla samochodów z Park Distance Control (PDC) |
S508A=Tak |
|||||||||
| 17 | Uchwyt czujnika ultradźwiękowego | 4 | 03/2005 | 51127039602 | $1.08 | Shop at ECS Tuning | ||||
