Obudowa z elem. ozdobnymi, tylna for BMW 7 Series E65 745i (2003)

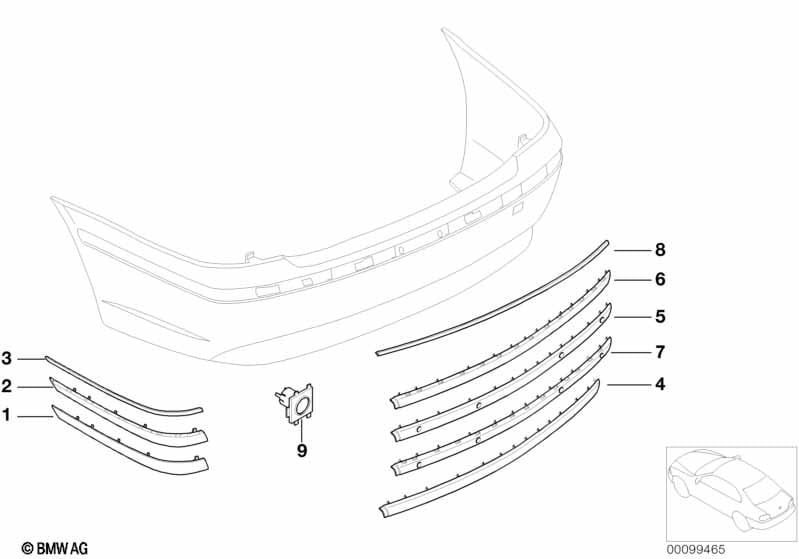

This Obudowa z elem. ozdobnymi, tylna technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | List. zderz. gruntowana tylna lewa | 1 | 03/2005 | 51127043369 | $34.55 | Shop at ECS Tuning | ||||
| 01 | List. zderz. gruntow. tylna prawa | 1 | 03/2005 | 51127043370 | $34.55 | Shop at ECS Tuning | ||||
| 04 | Listwa zderzakowa środkowa gruntowana | 1 | 03/2005 | 51127043366 | $35.85 | Shop at ECS Tuning | ||||
| Dla samochodów z Park Distance Control (PDC) |
S508A=Tak |
|||||||||
| 05 | Listwa zderzakowa środkowa gruntowana | PDC | 1 | 03/2005 | 51127042568 | $35.85 | Shop at ECS Tuning | |||
| 09 | Uchwyt czujnika ultradźwiękowego | 4 | 03/2005 | 51127039602 | $1.08 | Shop at ECS Tuning | ||||
