Emblematy / Ciągi napisów for BMW 7 Series E65 745i (2003)

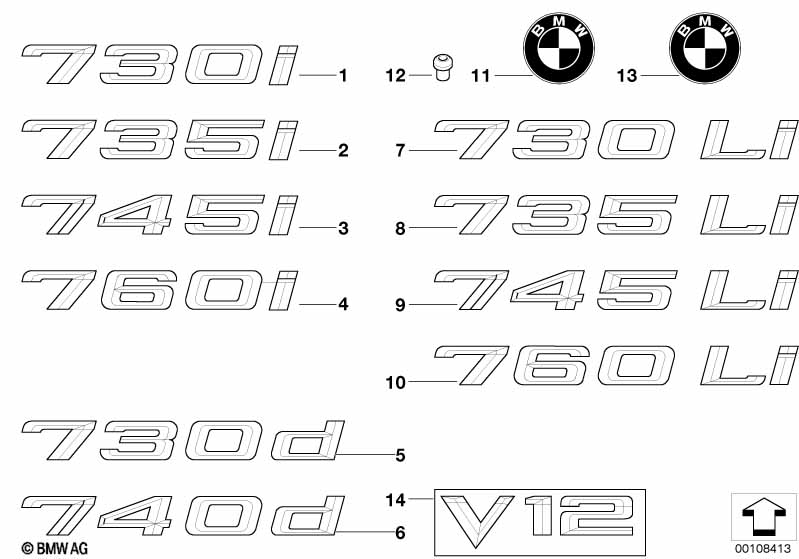

This Emblematy / Ciągi napisów technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Napis | - 745I - | 1 | 03/2005 | 51147033242 | $33.62 | Shop at ECS Tuning | |||
| pasuje tylko do pokrywy przedniej | ||||||||||
| 11 | Emblemat | Ø 82MM | 1 | 03/2005 | 51148132375 | $32.02 | Shop at ECS Tuning | |||
| Konieczne do naprawy | ||||||||||
| -- | Końcówka | 2 | 03/2005 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
| pasuje tylko do tylnej klapy | ||||||||||
| 12 | Końcówka | 2 | 03/2005 | 51148209932 | $0.22 | Shop at ECS Tuning | ||||
| pasuje tylko do pokrywy przedniej | ||||||||||
| 12 | Końcówka | 2 | 03/2005 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
| pasuje tylko do tylnej klapy | ||||||||||
| 13 | Plakietka tylnej klapy | 1 | 03/2005 | 51141970248 | $30.43 | Shop at ECS Tuning | ||||
