Podsufitka / Uchwyt for BMW 7 Series E65 745i (2003)

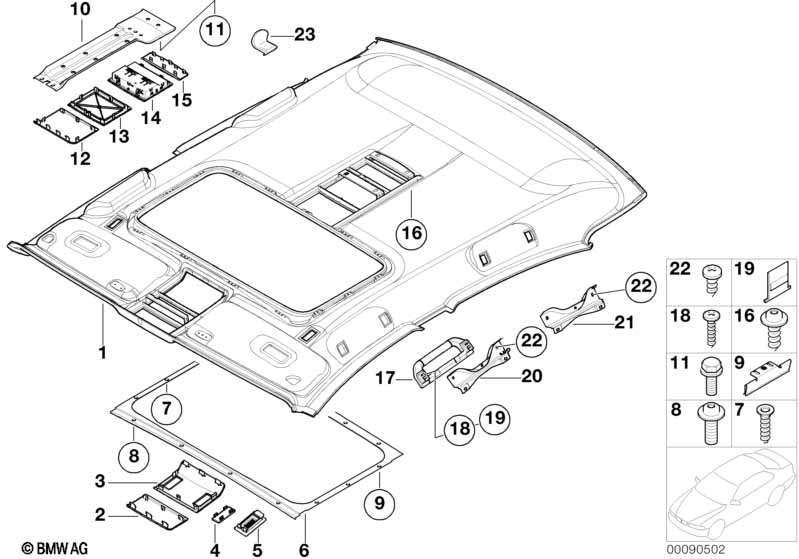

This Podsufitka / Uchwyt technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Podsufitka profil. dachu przes.-uchyl. | ANTHRAZIT | 1 | 03/2005 | 51447043499 | $724.62 | +podst | Shop at ECS Tuning | ||
| 01 | Podsufitka profil. dachu przes.-uchyl. | BEIGE | 1 | 03/2005 | 51447029400 | $724.62 | +podst | Shop at ECS Tuning | ||
| 01 | Podsufitka profil. dachu przes.-uchyl. | STEINGRAU | 1 | 03/2005 | 51447029399 | $724.62 | +podst | Shop at ECS Tuning | ||
| Dla samochodów z Podsufitka Alcantara antracyt |
S776A=Tak |
|||||||||
| 01 | Podsufitka profil. dachu przes.-uchyl. | ANTHRAZIT | 1 | 03/2005 | 51447146474 | $1828.17 | Zakończono | Shop at ECS Tuning | ||
| 02 | Wkład konsoli przedniej | DARKSILVER | 1 | 03/2005 | 51447021983 | $14.41 | Shop at ECS Tuning | |||
| 03 | Wkład konsoli przedniej | DARKSILVER | 1 | 03/2005 | 51447129424 | $14.41 | Zakończono | Shop at ECS Tuning | ||
| 03 | Wkład konsoli przedniej | BEIGE | 1 | 03/2005 | 51447129427 | $14.41 | Zakończono | Shop at ECS Tuning | ||
| Dla samochodów z Telefon samoch. z słuchawką bezprzew. lub Całk. zintegr. tel. kom., standard USA |
S630A=Tak S642A=Tak |
|||||||||
| 05 | Osłona mikrofonu | STEINGRAU | 1 | 03/2005 | 51447024806 | $4.37 | Shop at ECS Tuning | |||
| 05 | Osłona mikrofonu | SCHWARZ | 1 | 03/2005 | 51447905260 | $5.14 | Shop at ECS Tuning | |||
| 05 | Osłona mikrofonu | BEIGE | 1 | 03/2005 | 51447024807 | $4.37 | Shop at ECS Tuning | |||
| Dla samochodów z Telefon samoch. z słuchawką bezprzew. i Całk. zintegr. tel. kom., standard USA |
S630A=Nie S642A=Nie |
|||||||||
| 05 | Osłona | STEINGRAU | 1 | 03/2005 | 51447065931 | $4.37 | Shop at ECS Tuning | |||
| 05 | Osłona | BEIGE | 1 | 03/2005 | 51447065932 | $4.37 | Shop at ECS Tuning | |||
| 05 | Osłona przednia | SCHWARZ | 1 | 03/2005 | 51447905261 | $4.37 | Shop at ECS Tuning | |||
| 06 | Rama dachu przesuwno-uchyln. | SCHWARZ | 1 | 03/2005 | 54138234526 | $37.83 | Shop at ECS Tuning | |||
| Dla samochodów z Dach przesuwno-uchylny, elektryczny |
S403A=Tak |
|||||||||
| 07 | Wkręt Torx | ISA L=9.5MM | 14 | 03/2005 | 54128169957 | $0.29 | Shop at ECS Tuning | |||
| 08 | Śruba z łbem walcowym soczewkowym | 4 | 03/2005 | 51449128842 | $0.53 | Shop at ECS Tuning | ||||
| 09 | Klamra ramy dachu przesuwno-uchyln. | 14 | 03/2005 | 07147147142 | $0.75 | Shop at ECS Tuning | ||||
| Dla samochodów z Instalacja alarmowa |
S302A=Tak |
|||||||||
| 12 | Wkład konsoli tylnej | DARKSILVER | 1 | 03/2005 | 51447012088 | $17.74 | Zakończono | Shop at ECS Tuning | ||
| 14 | Wkład konsoli lusterka kosmet. tylny | DARK SILVER | 1 | 03/2005 | 51446964036 | $178.53 | Shop at ECS Tuning | |||
| 15 | Wkład konsoli tylnej | DARKSILVER | 1 | 03/2005 | 51447037175 | $11.27 | Zakończono | Shop at ECS Tuning | ||
| 16 | Wkręt samogwintujący | ST4,8X16MM | 6 | 03/2005 | 07149159443 | $1.02 | Shop at ECS Tuning | |||
| Dla samochodów z Dach przesuwno-uchylny, elektryczny |
S403A=Tak |
|||||||||
| 17 | Uchwyt | STEINGRAU | 4 | 03/2005 | 51169143554 | $13.87 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Pokrywka uchwytu 13° | STEINGRAU | 8 | 03/2005 | 51167063004 | $0.46 | Shop at ECS Tuning | |||
| 17 | Uchwyt | BEIGE | 4 | 03/2005 | 51169143555 | $13.87 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Pokrywka uchwytu 13° | BEIGE | 8 | 03/2005 | 51167063005 | $0.46 | Shop at ECS Tuning | |||
| 17 | Uchwyt | ANTHRAZIT | 4 | 03/2005 | 51169143556 | $13.87 | Zakończono | Shop at ECS Tuning | ||
| tylko w połączeniu z | ||||||||||
| -- | Pokrywka uchwytu 13° | ANTHRAZIT | 8 | 03/2005 | 51167063006 | $0.46 | Shop at ECS Tuning | |||
| 18 | Wkręt samogwintujący | ST4,8X20MM | 8 | 03/2005 | 07149144231 | $0.32 | Shop at ECS Tuning | |||
| Dla samochodów z Dach przesuwno-uchylny, elektryczny |
S403A=Tak |
|||||||||
| 19 | Pokrywka uchwytu 13° | STEINGRAU | 8 | 03/2005 | 51167063004 | $0.46 | Shop at ECS Tuning | |||
| 19 | Pokrywka uchwytu 13° | BEIGE | 8 | 03/2005 | 51167063005 | $0.46 | Shop at ECS Tuning | |||
| 19 | Pokrywka uchwytu 13° | ANTHRAZIT | 8 | 03/2005 | 51167063006 | $0.46 | Shop at ECS Tuning | |||
| 20 | Wspornik do uchwytu dla pas., prz. lewy | 1 | 03/2005 | 51167026325 | $7.62 | Zakończono | Shop at ECS Tuning | |||
| 20 | Wspornik do uchwytu dla pas., prz. prawy | 1 | 03/2005 | 51167026326 | $7.62 | Zakończono | Shop at ECS Tuning | |||
| 21 | Uchwyt do uchwytu dla pas., tylny lewy | 1 | 03/2005 | 51167026327 | $7.93 | Zakończono | Shop at ECS Tuning | |||
| 21 | Uchwyt do uchwytu dla pas., tylny prawy | 1 | 03/2005 | 51167026328 | $7.93 | Zakończono | Shop at ECS Tuning | |||
| 22 | Blachowkręt | ST4,8X13-C-U1-Z | 12 | 03/2005 | 07119906128 | $0.18 | Shop at ECS Tuning | |||
| 23 | Hak uchwytu | SCHWARZ | 2 | 03/2005 | 51162236798 | $0.86 | Shop at ECS Tuning | |||
| 23 | Hak uchwytu | STEINGRAU | 2 | 03/2005 | 51167017794 | $0.86 | Zakończono | Shop at ECS Tuning | ||
| 23 | Hak uchwytu | BEIGE | 2 | 03/2005 | 51167043537 | $0.86 | Zakończono | Shop at ECS Tuning | ||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Podsufitka / Uchwyt?
- This technical diagram illustrates the Podsufitka / Uchwyt within the Wyposażenie pojazdu group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Podsufitka profil. dachu przes.-uchyl. (Part #51447043499).
- Which models use the hardware listed in this Podsufitka / Uchwyt?
- The hardware and components featured in the Podsufitka / Uchwyt are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Podsufitka profil. dachu przes.-uchyl. (51447043499) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Podsufitka / Uchwyt assembly?
- Each item in the Podsufitka / Uchwyt corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Podsufitka profil. dachu przes.-uchyl. by locating its position on the schematic, which then links to the official BMW part number 51447043499 for the Wyposażenie pojazdu section.
