Osłona progów / nadkola for BMW 7 Series E65 745i (2003)

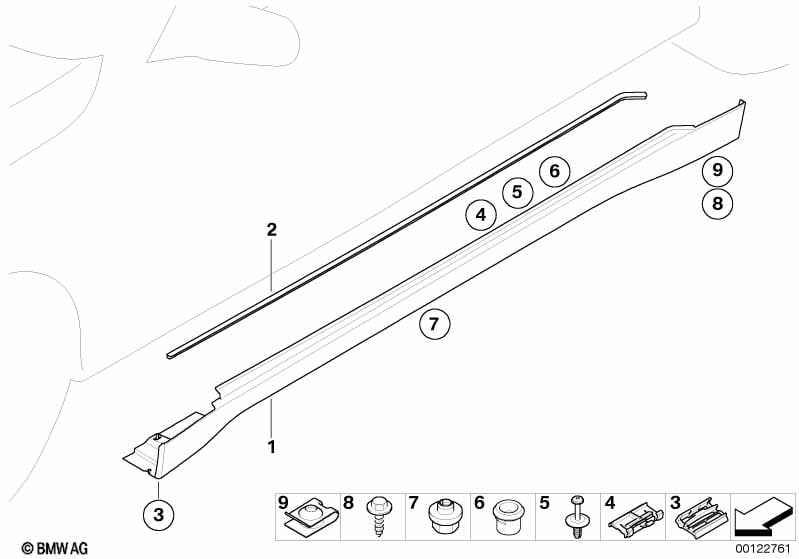

This Osłona progów / nadkola technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Osłona progu gruntowana lewa | 1 | 03/2005 | 51717033129 | $257.11 | Shop at ECS Tuning | ||||
| 01 | Osłona progu gruntowana prawa | 1 | 03/2005 | 51717033130 | $257.11 | Shop at ECS Tuning | ||||
| 02 | Listwa uszczelniająca | 1872 MM | 2 | 03/2005 | 51717038274 | $22.00 | Zakończono | Shop at ECS Tuning | ||
| 03 | Zaczep | ROT | X | 03/2005 | 51717037377 | $1.44 | Shop at ECS Tuning | |||
| 05 | Nit rozprężny | X | 03/2005 | 51718259788 | $0.37 | Shop at ECS Tuning | ||||
| 06 | Tuleja zielona | D=9,1MM | X | 03/2005 | 51711932996 | $0.23 | Shop at ECS Tuning | |||
| 07 | Nakrętka sześciokątna | 2 | 03/2005 | 61358230971 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Śruba z łbem sześciokątnym z podkł. | ST4,8X16MM | 8 | 03/2005 | 07147129160 | $0.36 | Shop at ECS Tuning | |||
| 09 | Nakrętka | ST4,8-9-ZNS3 | 8 | 03/2005 | 07129904150 | $0.25 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
