Obudowa bagażnika-tylna klapa for BMW 7 Series E65 745i (2003)

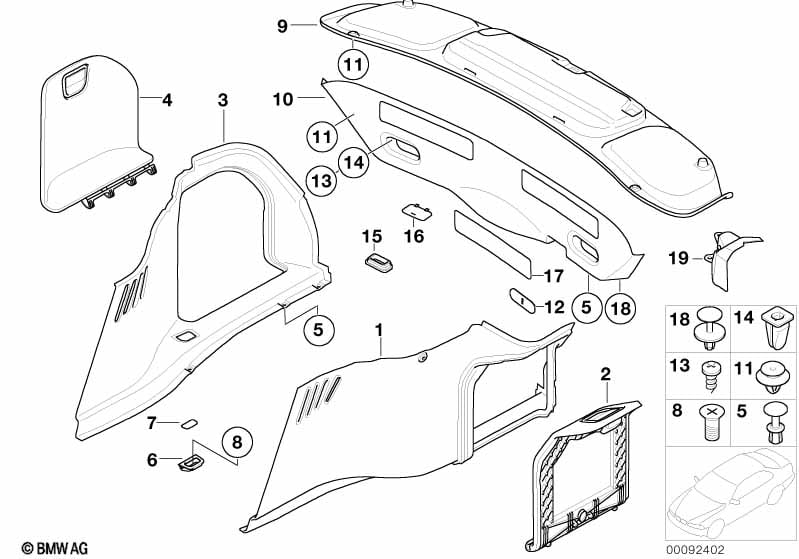

This Obudowa bagażnika-tylna klapa technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Obudowa bagażnika lewa | BASALTGRAU HELL | 1 | 03/2004 | 51478223555 | $174.98 | Zakończono, +podst | Shop at ECS Tuning | ||
| Dla samochodów z Fotel komfort siedz. tyln. reg. elektr. |
S460A=Tak |
|||||||||
| 01 | Obudowa bagażnika lewa | BASALTGRAU HELL | 1 | 03/2004 | 51477018911 | $174.98 | Zakończono, +podst | Shop at ECS Tuning | ||
| 02 | Klapka obudowy bagażnika, lewa | BASALTGRAU HELL | 1 | 03/2004 | 51478268763 | $93.37 | +podst | Shop at ECS Tuning | ||
| 03 | Obudowa bagażnika prawa | BASALTGRAU HELL | 1 | 03/2004 | 51478223556 | $174.98 | Zakończono, +podst | Shop at ECS Tuning | ||
| Dla samochodów z Fotel komfort siedz. tyln. reg. elektr. |
S460A=Tak |
|||||||||
| 03 | Obudowa bagażnika prawa | BASALTGRAU HELL | 1 | 03/2004 | 51477018912 | $174.98 | Zakończono, +podst | Shop at ECS Tuning | ||
| 04 | Klapka obudowy bagażnika, prawa | BASALTGRAU HELL | 1 | 03/2004 | 51478268764 | $93.37 | +podst | Shop at ECS Tuning | ||
| 05 | Nit rozprężny | SCHWARZ | X | 03/2005 | 51498166702 | $0.37 | Shop at ECS Tuning | |||
| 06 | Uchwyt mocujący | CHROM/BASALTGR. | 2 | 03/2005 | 51477193696 | $23.62 | Shop at ECS Tuning | |||
| 07 | Pokrywa ucha mocującego | BASALTGRAU HELL | 2 | 03/2005 | 51477038193 | $0.73 | Shop at ECS Tuning | |||
| 08 | Śruba | M6X16-8.8-ZNS3 | 4 | 03/2005 | 07119904304 | $0.25 | Shop at ECS Tuning | |||
| 09 | Obudowa pokrywy bagażnika górna | BASALTGRAU HELL | 1 | 03/2004 | 51497007029 | $142.52 | Zakończono | Shop at ECS Tuning | ||
| 10 | Tapicerka pokrywy bagażnika dolna | BASALTGRAU HELL | 1 | 03/2005 | 51497036133 | $77.05 | Zakończono | Shop at ECS Tuning | ||
| 11 | Zaczep, kolor. naturalny | 10 | 03/2005 | 51497054228 | $0.35 | Shop at ECS Tuning | ||||
| 12 | Osłona wgłębienia uchwytu | 2 | 03/2005 | 51498186782 | $0.63 | Shop at ECS Tuning | ||||
| 13 | Blachowkręt | ST4,8X9,5-C-H-Z | 2 | 03/2005 | 07119901200 | $0.17 | Shop at ECS Tuning | |||
| 14 | Nakrętka | 2 | 03/2005 | 51717013308 | $0.26 | Shop at ECS Tuning | ||||
| Dla samochodów z Autom. uruchamianie tylnej klapy |
S316A=Tak |
|||||||||
| 15 | Rama | 1 | 03/2005 | 51497004896 | $4.87 | Shop at ECS Tuning | ||||
| 16 | Osłona przycisku pokrywy bag. | BASALTGRAU HELL | 1 | 03/2005 | 51497036399 | $3.60 | Shop at ECS Tuning | |||
| 17 | Osłona lampy tylnej w pokrywie bag. | BASALTGRAU HELL | 2 | 03/2005 | 51497030468 | $8.40 | Zakończono | Shop at ECS Tuning | ||
| 18 | Nit rozprężny | BASALTGRAU HELL | 4 | 03/2005 | 51497054361 | $0.57 | Shop at ECS Tuning | |||
| 19 | Osłona zawiasu lewa | 1 | 03/2005 | 51497027265 | $17.89 | Shop at ECS Tuning | ||||
| 19 | Osłona zawiasu prawa | 1 | 03/2005 | 51497027266 | $17.89 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
