Konsola środkowa for BMW MINI R50 Cooper (2004)

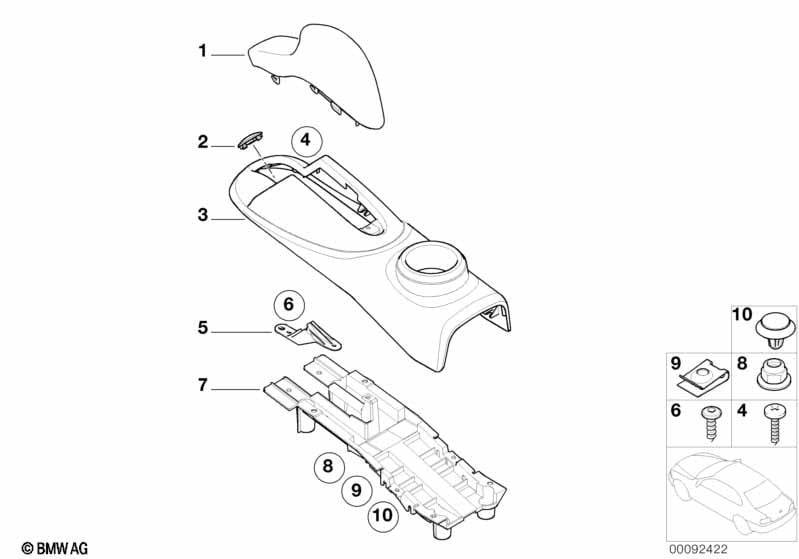

This Konsola środkowa technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Osłona dźwigni hamulca ręcznego | PANTHER BLACK | 1 | 07/2004 | 34421171195 | $57.50 | Shop at ECS Tuning | |||
| Dla samochodów z silber-grau |
PV=Tak |
|||||||||
| 02 | Osłona przełącznika | SILVER GREY | 2 | 07/2004 | 51167147197 | $13.54 | Shop at ECS Tuning | |||
| Dla samochodów z cordoba-beige lub emerald-green lub panther-black lub tartan-red |
CB=Tak EM=Tak PN=Tak TB=Tak |
|||||||||
| 02 | Osłona przełącznika | PANTHER BLACK | 2 | 07/2004 | 51167147196 | $13.54 | +podst | Shop at ECS Tuning | ||
| Dla samochodów z silber-grau |
PV=Tak |
|||||||||
| 03 | Konsola hamulca ręczn. | SILVER GREY | 1 | 07/2004 | 51167147193 | $31.60 | Zakończono, +podst | Shop at ECS Tuning | ||
| Dla samochodów z cordoba-beige lub emerald-green lub panther-black lub tartan-red |
CB=Tak EM=Tak PN=Tak TB=Tak |
|||||||||
| 03 | Konsola hamulca ręczn. | PANTHER BLACK | 1 | 07/2004 | 51167147192 | $31.60 | +podst | Shop at ECS Tuning | ||
| 04 | Wkręt samogwintujący | ST4,8X16MM | 4 | 07/2004 | 07142756133 | $0.29 | Shop at ECS Tuning | |||
| 05 | Uchwyt | 2 | 07/2004 | 51161172019 | $1.21 | Shop at ECS Tuning | ||||
| 06 | Śruba torx | 4 | 07/2004 | 07131481791 | $2.15 | Zakończono | Shop at ECS Tuning | |||
| 07 | Uchwyt konsoli hamulca ręcznego | 1 | 09/2003 | 07/2004 | 51167121737 | $9.38 | Shop at ECS Tuning | |||
| 08 | Nakrętka sześciokątna | 6 | 07/2004 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 09 | Nakrętka | ST4,8-9-ZNS3 | 1 | 07/2004 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 10 | Zaczep | 4 | 07/2004 | 07131481910 | $0.26 | Shop at ECS Tuning | ||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
