Wspornik przedni for BMW 7 Series E65 745i (2003)

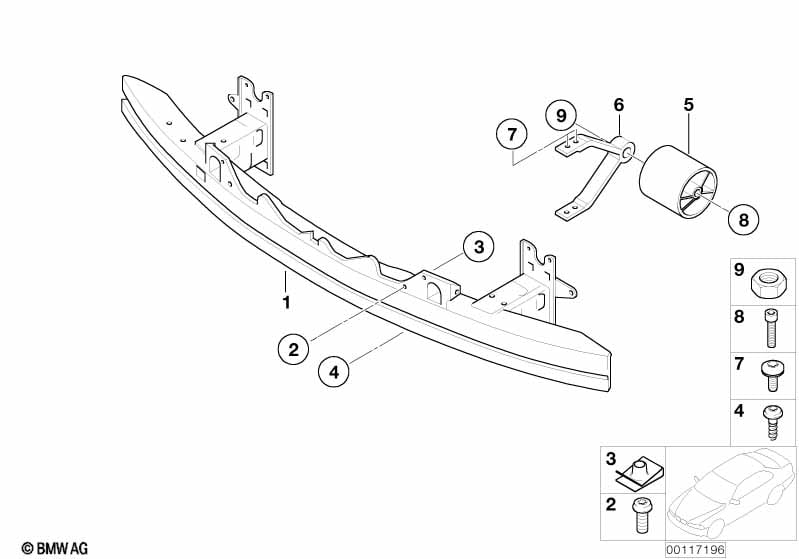

This Wspornik przedni technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wspornik zderzaka przedniego | 1 | 03/2004 | 51117135523 | $373.82 | +podst | Shop at ECS Tuning | |||
| 01 | Wspornik zderzaka przedniego | 1 | 03/2005 | 51117135523 | $373.82 | +podst | Shop at ECS Tuning | |||
| 02 | Śruba torx | ISA M6X18 SW | X | 03/2005 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 03 | nakrętka C-Clip | M6-ZNS3 | X | 03/2005 | 51127070202 | $1.00 | Shop at ECS Tuning | |||
| 04 | Śruba soczewkowa | 2 | 03/2005 | 07146959896 | $0.38 | Shop at ECS Tuning |
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
