Ekran komory siln./Obud. podwozia for BMW 7 Series E65 745i (2003)

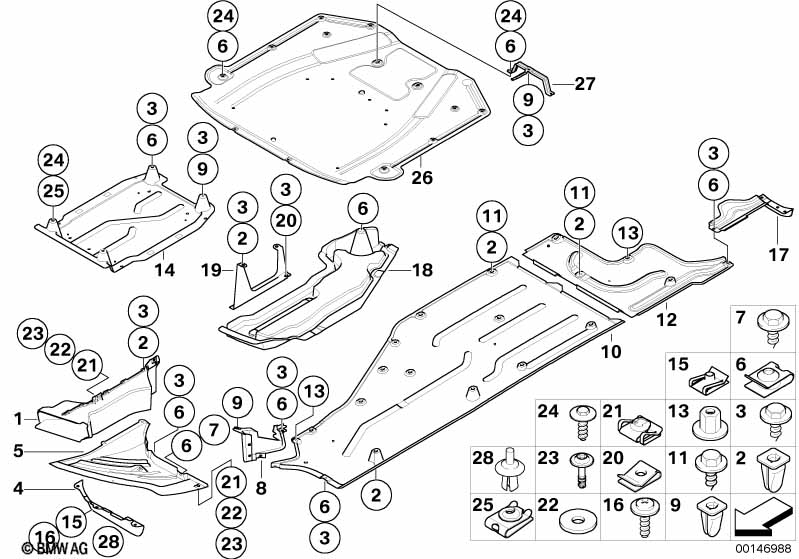

This Ekran komory siln./Obud. podwozia technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Osłona komory silnika boczna, lewa | 1 | 03/2005 | 51757153783 | $44.00 | Shop at ECS Tuning | ||||
| 01 | Osłona komory silnika boczna, prawa | 1 | 03/2005 | 51757153784 | $44.00 | Shop at ECS Tuning | ||||
| 02 | Nakrętka | ST 4.8 | 4 | 03/2005 | 63121374075 | $0.23 | Shop at ECS Tuning | |||
| 04 | Uszczelka lewa | 1 | 03/2005 | 51717027445 | $16.97 | Shop at ECS Tuning | ||||
| 04 | Uszczelka prawa | 1 | 03/2005 | 51717027446 | $16.97 | Shop at ECS Tuning | ||||
| 05 | Osłona dolna lewa | 1 | 12/2003 | 03/2005 | 51757153787 | $14.05 | Shop at ECS Tuning | |||
| 05 | Osłona dolna prawa | 1 | 12/2003 | 03/2005 | 51717153788 | $14.05 | Shop at ECS Tuning | |||
| 06 | Nakrętka | ST4,8-9-ZNS3 | 15 | 03/2005 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 06 | Nakrętka samozabezp. | 3,4 | 12 | 03/2005 | 07143428236 | $0.18 | Shop at ECS Tuning | |||
| 07 | Blachowkręt | ST 4,8X18 SW8 | 2 | 03/2005 | 07147129161 | $0.25 | Shop at ECS Tuning | |||
| 08 | Pokrywa obudowy podwozia, prawa | 1 | 03/2005 | 51717012792 | $15.53 | Shop at ECS Tuning | ||||
| 08 | Pokrywa obudowy podwozia, lewa | 1 | 03/2005 | 51717046767 | $15.53 | Zakończono | Shop at ECS Tuning | |||
| 09 | Nakrętka | ST 4.8 WEISS | 2 | 03/2005 | 63171367868 | $0.60 | Shop at ECS Tuning | |||
| 10 | Osłona podwozia, lewa | 1 | 03/2005 | 51717020533 | $126.63 | Shop at ECS Tuning | ||||
| 10 | Osłona podwozia prawa | 1 | 03/2005 | 51717020534 | $126.63 | Shop at ECS Tuning | ||||
| 11 | Śruba sześciokątna | TS5X17 SW8 D=16 | 10 | 03/2005 | 07149126885 | $0.49 | Shop at ECS Tuning | |||
| 12 | Osłona podwozia, tylna le. | 1 | 03/2005 | 51717020537 | $57.24 | Shop at ECS Tuning | ||||
| 12 | Osłona podwozia, tylna pr. | 1 | 03/2005 | 51717020538 | $57.24 | Shop at ECS Tuning | ||||
| 13 | Kunststoffhutmutter mit Scheibe | D=18MM | 14 | 03/2005 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 13 | Nakrętka plast. sworznia z gwintem zgr. | M6 | 14 | 03/2005 | 07147336362 | Shop at ECS Tuning | ||||
| 14 | Osłona podwozia, środkowa | 1 | 03/2005 | 51717002379 | $80.59 | Shop at ECS Tuning | ||||
| 15 | Nakrętka | ST 4,8-11-ZNS | 6 | 03/2005 | 07129901551 | $0.25 | Shop at ECS Tuning | |||
| 16 | Blachowkręt | ST4,8X16 | 6 | 03/2005 | 07119905507 | $0.27 | Shop at ECS Tuning | |||
| 17 | Uszczelka tylna lewa | 1 | 03/2005 | 51717030707 | $16.97 | Shop at ECS Tuning | ||||
| 17 | Uszczelka tylna prawa | 1 | 03/2005 | 51717030708 | $16.97 | Shop at ECS Tuning | ||||
| 21 | nakrętka C-Clip | X | 12/2003 | 03/2005 | 07146981767 | $1.33 | Shop at ECS Tuning | |||
| 22 | Podkładka zabezpieczająca | X | 12/2003 | 03/2005 | 51717134410 | $0.32 | Shop at ECS Tuning | |||
| 23 | Śruba zamykająca | L=20MM | X | 12/2003 | 03/2005 | 51717134392 | $1.20 | Shop at ECS Tuning | ||
| 24 | Blachowkręt | ST 4,8X18 SW8 | 4 | 03/2005 | 07147129161 | $0.25 | Shop at ECS Tuning | |||
| 25 | Nakrętka samozabezp. | 4 | 03/2005 | 32307023082 | $0.61 | Shop at ECS Tuning | ||||
| 28 | Nit rozprężny | 2 | 03/2005 | 51481905599 | $0.77 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
