Listwa dachowa ozdobna/Reling dachowy for BMW 7 Series E65 745i (2003)

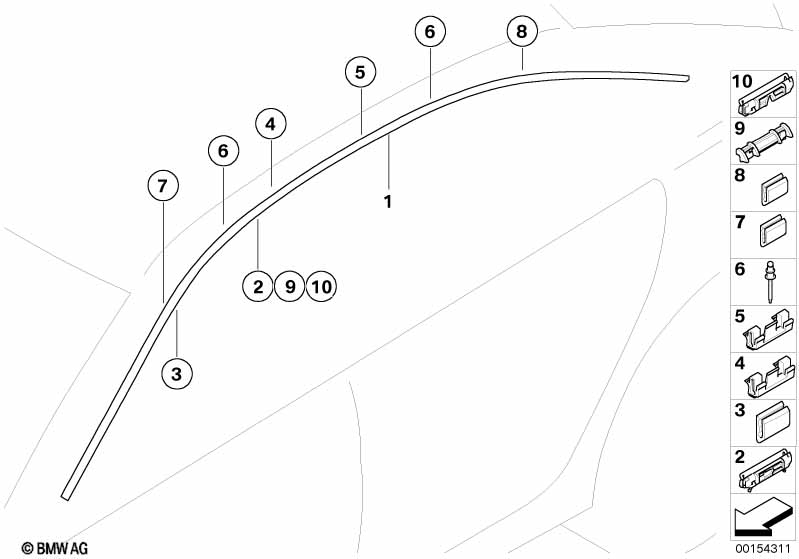

This Listwa dachowa ozdobna/Reling dachowy technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Listwa ozdobna dachu gruntowana lewa | 1 | 51137053345 | $207.73 | Shop at ECS Tuning | |||||
| 01 | Listwa ozdobna dachu gruntowana prawa | 1 | 51137053346 | $207.73 | Shop at ECS Tuning | |||||
| 02 | Klamra | X | 51137195479 | $1.26 | Shop at ECS Tuning | |||||
| 03 | Klamra | X | 51137003738 | $0.50 | Shop at ECS Tuning | |||||
| 04 | Klamra | SCHWARZ | 4 | 51137019272 | $3.11 | Shop at ECS Tuning | ||||
| 05 | Klamra | WEISS | 4 | 51137019273 | $3.11 | Shop at ECS Tuning | ||||
| Grubość materiału / strefa zacisku 2,5 - 6,0mm |
||||||||||
| 06 | Nit naprawczy do sworznia T | 2,4X5MM | 2 | 07148497787 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Nit naprawczy do sworznia T | 2,4X8,5MM | 2 | 07148497788 | Shop at ECS Tuning | |||||
| Grubość materiału / strefa zacisku 0,8 - 2,5mm |
||||||||||
| 06 | Nit naprawczy do sworznia T | 2,4X5MM | 2 | 07/2008 | 07147075520 | $3.46 | Zakończono | Shop at ECS Tuning | ||
| 06 | Nit naprawczy do sworznia T | 2,4X8,5MM | 2 | 07149276004 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Wspornik | SCHWARZ | 4 | 51137111384 | $0.69 | Shop at ECS Tuning | ||||
| 08 | Wspornik | WEISS | 2 | 51137111383 | $0.69 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Listwa dachowa ozdobna/Reling dachowy?
- This technical diagram illustrates the Listwa dachowa ozdobna/Reling dachowy within the Wyposażenie pojazdu group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Listwa ozdobna dachu gruntowana lewa (Part #51137053345).
- Which models use the hardware listed in this Listwa dachowa ozdobna/Reling dachowy?
- The hardware and components featured in the Listwa dachowa ozdobna/Reling dachowy are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Listwa ozdobna dachu gruntowana lewa (51137053345) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Listwa dachowa ozdobna/Reling dachowy assembly?
- Each item in the Listwa dachowa ozdobna/Reling dachowy corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Listwa ozdobna dachu gruntowana lewa by locating its position on the schematic, which then links to the official BMW part number 51137053345 for the Wyposażenie pojazdu section.
