Różne elementy nadwozia for BMW 7 Series E65 745i (2003)

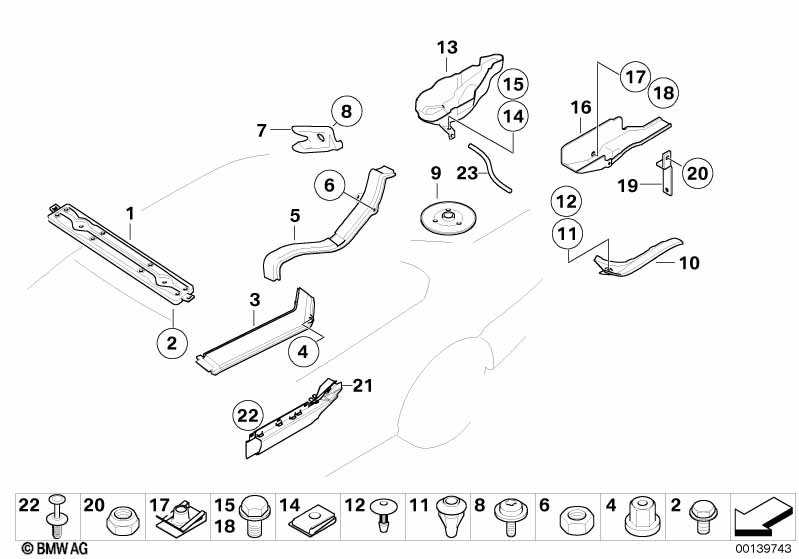

This Różne elementy nadwozia technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wspornik połącz. tunelu, tylny | 1 | 03/2005 | 51717024832 | $38.82 | Zakończono | Shop at ECS Tuning | |||
| 02 | Śruba z podkładką | M8X18-U1-8.8 | 8 | 03/2005 | 07119905529 | $0.96 | Shop at ECS Tuning | |||
| 03 | Osłona przewodu | 1 | 03/2005 | 51718244146 | $10.49 | Zakończono | Shop at ECS Tuning | |||
| 04 | Nakrętka plast. sworznia z gwintem zgr. | M6 | 4 | 03/2005 | 16131176747 | $0.53 | Shop at ECS Tuning | |||
| 05 | Osłona przew. podłogi tył | 1 | 03/2005 | 51718244145 | $12.17 | Zakończono | Shop at ECS Tuning | |||
| 06 | Nakrętka sześciokątna | 2 | 03/2005 | 61358230971 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Uchwyt akumulatora, tylny | 1 | 03/2005 | 51718238766 | $1.28 | Shop at ECS Tuning | ||||
| 08 | Śruba z podkładką | ISA M8X23 | 1 | 03/2005 | 07147172616 | $0.71 | Shop at ECS Tuning | |||
| 08 | Śruba z podkładką | M8X24 | 1 | 03/2005 | 07149112450 | Shop at ECS Tuning | ||||
| 09 | Wspornik uchwytu koła zapasowego | 1 | 03/2005 | 51718223441 | $5.68 | Shop at ECS Tuning | ||||
| 10 | Osłona rynienki odpływowej lewa | 1 | 03/2005 | 51717033259 | $12.17 | Zakończono | Shop at ECS Tuning | |||
| 10 | Osłona rynienki odpływowej prawa | 1 | 03/2005 | 51717033260 | $12.17 | Shop at ECS Tuning | ||||
| 11 | Zaczep - dolna część | 2 | 03/2005 | 51717049175 | $0.55 | Shop at ECS Tuning | ||||
| 12 | Zaczep - górna część | 2 | 03/2005 | 51717048316 | $1.45 | Shop at ECS Tuning | ||||
| 13 | Osłona sterownika prawego | 1 | 03/2005 | 51717115226 | $11.65 | Shop at ECS Tuning | ||||
| 14 | Nakrętka | 1 | 03/2005 | 07149145863 | $3.08 | Zakończono | Shop at ECS Tuning | |||
| 15 | Śruba z podkładką | M6X12-U2-8.8 | 1 | 03/2005 | 07119904459 | $0.65 | Shop at ECS Tuning | |||
| 16 | Osłona sterownika | 1 | 04/2003 | 03/2005 | 51717124576 | $10.43 | Zakończono | Shop at ECS Tuning | ||
| 17 | Nakrętka | M5 | 1 | 03/2005 | 61131372033 | $1.37 | Shop at ECS Tuning | |||
| 18 | Śruba sześciokątna | M5X14-8.8-ZNNIV | 1 | 03/2005 | 07119904269 | $0.36 | Shop at ECS Tuning | |||
| 19 | Uchwyt osłony sterownika, lewy | 1 | 03/2005 | 51717115392 | $3.46 | Shop at ECS Tuning | ||||
| 20 | Nakrętka sześciokątna | M4-A2-70 | 2 | 03/2005 | 07129906098 | $1.00 | Shop at ECS Tuning | |||
| 21 | Osłona przewodu tylna lewa | 1 | 03/2005 | 51717012103 | $4.73 | Shop at ECS Tuning | ||||
| 21 | Osłona przewodu tylna prawa | 1 | 03/2005 | 51717012104 | $4.73 | Zakończono | Shop at ECS Tuning | |||
| 22 | Nit rozprężny | D = 8MM | 8 | 03/2005 | 51471911992 | $0.40 | Shop at ECS Tuning | |||
| 23 | Przewód wentylacji tyłu pojazdu | L=520MM | 1 | 03/2005 | 51717115696 | $2.50 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
