Zewnętrzne osłony / Kratka ozdobna for BMW 6 Series E63 630i (2007)

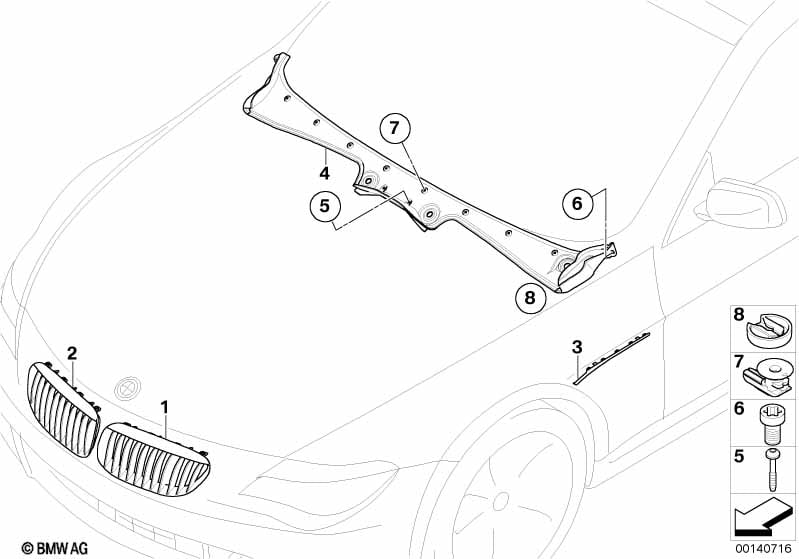

This Zewnętrzne osłony / Kratka ozdobna technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Krata wlotu powietrza lewa | SCHWARZ | 1 | 51137008915 | $77.61 | Shop at ECS Tuning | ||||
| 02 | Krata wlotu powietrza prawa | SCHWARZ | 1 | 51137008916 | $77.61 | Shop at ECS Tuning | ||||
| 03 | Osłona ozdob. ściany boczn. przedn. le. | 1 | 51137009247 | $34.75 | Shop at ECS Tuning | |||||
| 03 | Osłona ozdob. ściany boczn. przedn. pr. | 1 | 51137009248 | $34.75 | Shop at ECS Tuning | |||||
| 04 | Osłona wlotu powietrza | 1 | 51717008922 | $35.22 | Shop at ECS Tuning | |||||
| 05 | Śruba Torx z podkładką | ISA M6X32 | 2 | 07147154225 | Shop at ECS Tuning | |||||
| 06 | Śruba torx | ISA M6X12 | 2 | 51211973382 | $0.66 | Shop at ECS Tuning | ||||
| 07 | Zaczep | 8 | 51717145148 | $0.42 | Shop at ECS Tuning | |||||
| 08 | Zaczep | 2 | 51717127711 | $1.69 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E63 630i Zewnętrzne osłony / Kratka ozdobna?
- This technical diagram illustrates the Zewnętrzne osłony / Kratka ozdobna within the Wyposażenie pojazdu group for the 6 Series E63 630i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Krata wlotu powietrza lewa (Part #51137008915).
- Which models use the hardware listed in this Zewnętrzne osłony / Kratka ozdobna?
- The hardware and components featured in the Zewnętrzne osłony / Kratka ozdobna are specific to the 6 Series E63 630i produced during 2007. These technical specifications ensure that parts like the Krata wlotu powietrza lewa (51137008915) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zewnętrzne osłony / Kratka ozdobna assembly?
- Each item in the Zewnętrzne osłony / Kratka ozdobna corresponds to the numbered list below the illustration. For the 6 Series E63 630i, you can identify the Krata wlotu powietrza lewa by locating its position on the schematic, which then links to the official BMW part number 51137008915 for the Wyposażenie pojazdu section.
