Obudowa z elem. ozdobnymi, przednia for BMW MINI R50 Cooper (2004)

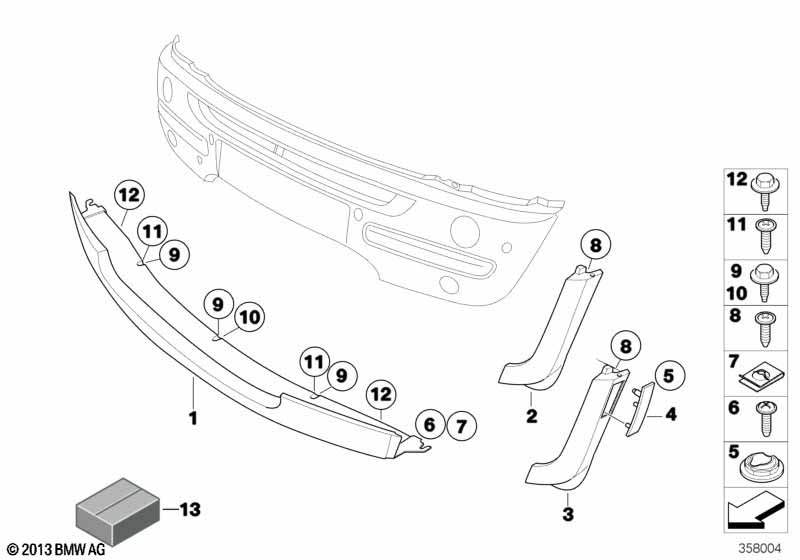

This Obudowa z elem. ozdobnymi, przednia technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spojler środek czarny | 1 | 07/2004 | 51116800135 | $45.80 | Shop at ECS Tuning | ||||
| 02 | Spojler prawy czarny | 1 | 07/2004 | 51116800133 | Shop at ECS Tuning | |||||
| 02 | Spojler lewy czarny | 1 | 07/2004 | 51116800134 | Shop at ECS Tuning | |||||
| Dla samochodów z Wersja krajowa Korea |
L802A=Tak |
|||||||||
| 04 | Boczne światło oznaczen. przedn. lewe | 1 | 63147165869 | $10.38 | Shop at ECS Tuning | |||||
| 04 | Boczne światło oznaczen. przedn. prawe | 1 | 63147165870 | $10.38 | Shop at ECS Tuning | |||||
| 05 | Nakrętka | 4 | 51418176418 | $0.23 | Shop at ECS Tuning | |||||
| 06 | Śruba soczewkowa | L=20MM | 4 | 07131484155 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Nakrętka | 2 | 64500630991 | $2.03 | Shop at ECS Tuning | |||||
| 08 | Śruba | 2 | 07130702939 | $0.38 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Śruba z podkładką | M6X25 | 3 | 07/2004 | 07147117693 | $1.09 | Shop at ECS Tuning | |||
| 12 | Śruba soczewkowa | L=18MM | 2 | 07147146367 | $0.29 | Shop at ECS Tuning | ||||
| 13 | Kpl. elem. montaż. spoilera przedn. | VALUE PARTS | 1 | 51112311958 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Obudowa z elem. ozdobnymi, przednia?
- This technical diagram illustrates the Obudowa z elem. ozdobnymi, przednia within the Wyposażenie pojazdu group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Spojler środek czarny (Part #51116800135).
- Which models use the hardware listed in this Obudowa z elem. ozdobnymi, przednia?
- The hardware and components featured in the Obudowa z elem. ozdobnymi, przednia are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Spojler środek czarny (51116800135) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Obudowa z elem. ozdobnymi, przednia assembly?
- Each item in the Obudowa z elem. ozdobnymi, przednia corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Spojler środek czarny by locating its position on the schematic, which then links to the official BMW part number 51116800135 for the Wyposażenie pojazdu section.
