Obudowa z elem. ozdobnymi, tylna for BMW MINI R50 Cooper (2004)

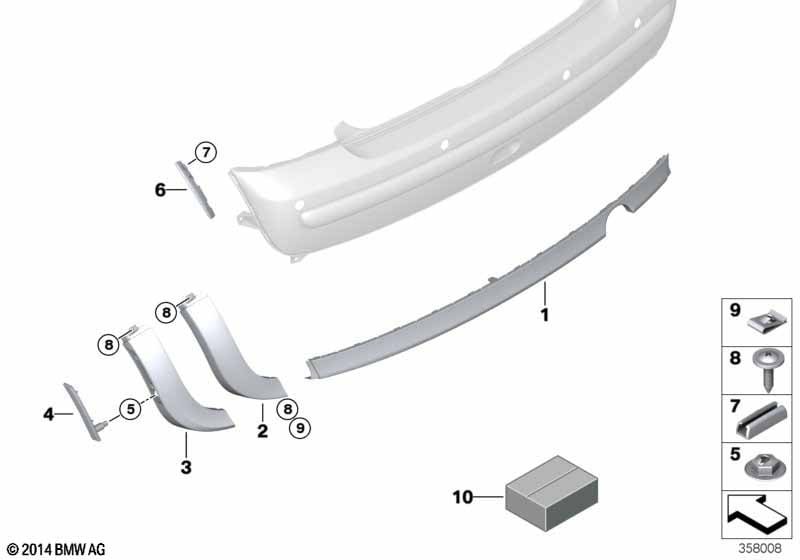

This Obudowa z elem. ozdobnymi, tylna technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Spoiler środkowy | SCHWARZ | 1 | 07/2004 | 51126800209 | $51.04 | Shop at ECS Tuning | |||
| 02 | Spojler prawy czarny | SCHWARZ | 1 | 07/2004 | 51126800203 | Shop at ECS Tuning | ||||
| 02 | Spojler lewy czarny | SCHWARZ | 1 | 07/2004 | 51126800204 | Shop at ECS Tuning | ||||
| Dla samochodów z Wersja krajowa Korea |
L802A=Tak |
|||||||||
| 03 | Spojler lewy czarny | SCHWARZ | 1 | 51127127967 | $15.40 | Shop at ECS Tuning | ||||
| 03 | Spoiler prawy | SCHWARZ | 1 | 51127127968 | $15.40 | Shop at ECS Tuning | ||||
| 04 | Boczne światło obrysowe tylne lewe | 1 | 63147165871 | $10.38 | Shop at ECS Tuning | |||||
| 04 | Boczne światło obrysowe tylne prawe | 1 | 63147165872 | $10.38 | Shop at ECS Tuning | |||||
| 05 | Nakrętka | 4 | 51418176418 | $0.23 | Shop at ECS Tuning | |||||
| 06 | Odbojnik prawy | 1 | 07/2004 | 51121492924 | $12.32 | Shop at ECS Tuning | ||||
| 06 | Odbojnik lewy | 1 | 07/2004 | 51121492925 | $12.32 | Shop at ECS Tuning | ||||
| 07 | Zaczep | 10 | 07/2004 | 07130702494 | $0.66 | Shop at ECS Tuning | ||||
| 08 | Śruba soczewkowa | L=20MM | 5 | 07131484155 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Śruba soczewkowa | L=18MM | 5 | 07147146367 | $0.29 | Shop at ECS Tuning | ||||
| 09 | Nakrętka | 2 | 64500630991 | $2.03 | Shop at ECS Tuning | |||||
| 10 | Kpl. elem. montaż. spoilera tyln. | VALUE PARTS | 1 | 51112311960 | Shop at ECS Tuning | |||||
