System zamykania drzwi z przodu for BMW MINI R50 Cooper (2004)

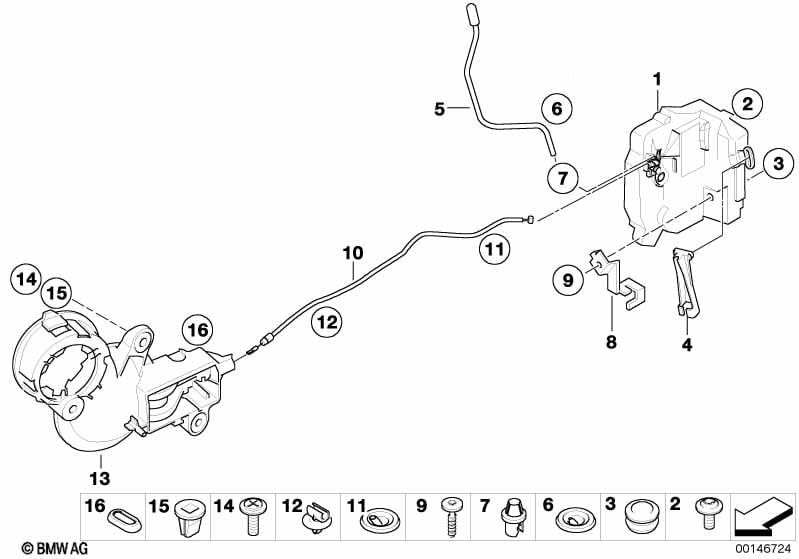

This System zamykania drzwi z przodu technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| pasuje tylko do strony kierowcy | ||||||||||
| 01 | Zamek lewy | 1 | 51200556768 | $117.07 | Shop at ECS Tuning | |||||
| pasuje tylko do strony pasażera | ||||||||||
| 01 | Zamek prawy | 1 | 51200556769 | $117.07 | Shop at ECS Tuning | |||||
| 02 | Śruba | 6 | 51212754815 | $0.56 | Shop at ECS Tuning | |||||
| 03 | Zaślepka | D=12MM | 2 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Uchwyt cięgna | 2 | 51217040548 | $13.18 | Shop at ECS Tuning | |||||
| 05 | Cięgno uruchamiające prawe | 1 | 51211499777 | $5.03 | Shop at ECS Tuning | |||||
| 05 | Cięgno uruchamiające lewe | 1 | 51211499778 | $5.03 | Shop at ECS Tuning | |||||
| 06 | Końcówka gumowa | 2 | 51211499776 | $1.33 | Shop at ECS Tuning | |||||
| 07 | Zaczep | 2 | 51217116342 | $1.23 | Shop at ECS Tuning | |||||
| 08 | Uchwyt cięgła, lewy | 1 | 51211499779 | $7.45 | Shop at ECS Tuning | |||||
| 08 | Uchwyt cięgła, prawy | 1 | 51211499780 | $7.45 | Shop at ECS Tuning | |||||
| 08 | Uchwyt cięgła, lewy | 1 | 51217113513 | $10.43 | Shop at ECS Tuning | |||||
| 08 | Uchwyt cięgła, prawy | 1 | 51217113514 | $10.43 | Shop at ECS Tuning | |||||
| 09 | Śruba Torx do tworzyw sztucznych | ISA L=20MM | 2 | 07146986087 | $0.25 | Zakończono | Shop at ECS Tuning | |||
| 10 | Cięgno dźwigni otw. drzwi | 2 | 51217143538 | $9.38 | Shop at ECS Tuning | |||||
| 11 | Tulejka uszczelniająca | 2 | 51217040547 | $1.72 | Shop at ECS Tuning | |||||
| 12 | Zaczep cięgna | 4 | 51217040546 | $0.35 | Shop at ECS Tuning | |||||
| 13 | Klamka wewn. prawa, matt silver | 1 | 51411502074 | $24.78 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 13 | Klamka wewn. lewa, matt silver | 1 | 51411502075 | $24.78 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 13 | Klamka wewn. lewa, chrom | 1 | 51417115341 | $36.85 | Shop at ECS Tuning | |||||
| 13 | Klamka wewn. prawa, chrom | 1 | 09/2002 | 51417115342 | $36.85 | Shop at ECS Tuning | ||||
| 14 | Śruba z kołnierzem | 4,2X13 | 6 | 10/2003 | 41007135209 | $0.28 | Shop at ECS Tuning | |||
| 15 | Nakrętka | D=6,7MM | 6 | 07130601661 | $0.47 | Shop at ECS Tuning | ||||
| 16 | Zaślepka | 12X18MM | 2 | 51710588793 | $0.79 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
