Otwieranie drzwi /Zamek drzwi przedni for BMW MINI R50 Cooper (2004)

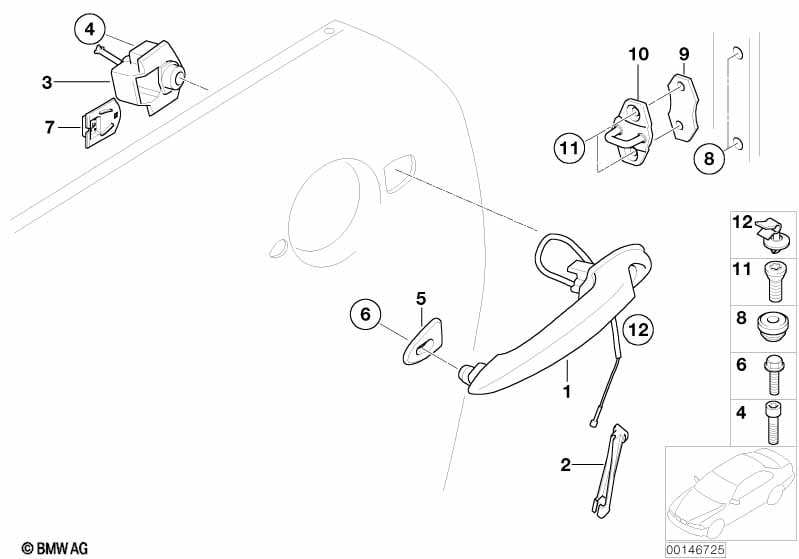

This Otwieranie drzwi /Zamek drzwi przedni technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| pasuje tylko do strony pasażera | ||||||||||
| 01 | Pałąk uchwytowy chromowany | 1 | 51217198472 | $48.25 | Shop at ECS Tuning | |||||
| pasuje tylko do strony kierowcy | ||||||||||
| 01 | Pałąk uchwytowy chromowany | 1 | 51217198471 | $48.25 | Shop at ECS Tuning | |||||
| 02 | Uchwyt cięgna | 2 | 51217040548 | $13.18 | Shop at ECS Tuning | |||||
| 03 | Zamek kodowany | 1 | 51217074428 | $95.07 | Shop at ECS Tuning | |||||
| 03 | Zamek z kluczem | 1 | 51217074440 | $83.04 | Shop at ECS Tuning | |||||
| 04 | Śruba imbusowa | 1 | 51217003125 | $4.73 | Shop at ECS Tuning | |||||
| 05 | Elementy mocujące | 2 | 51217040550 | $2.43 | Shop at ECS Tuning | |||||
| 06 | Śruba | 2 | 51217037778 | $0.59 | Shop at ECS Tuning | |||||
| pasuje tylko do strony pasażera | ||||||||||
| 07 | Elementy mocujące | 1 | 51217040549 | $2.52 | Shop at ECS Tuning | |||||
| 08 | Zaślepka | D=6MM | 4 | 51711904603 | $0.32 | Shop at ECS Tuning | ||||
| 09 | Uszczelka zaczepu zamka | 2 | 51217042375 | $0.92 | Shop at ECS Tuning | |||||
| 10 | Zaczep zamka | 2 | 51217010402 | $16.32 | Shop at ECS Tuning | |||||
| 11 | Śruba | 4 | 51212755020 | $0.69 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Śruba | 4 | 51219463885 | Shop at ECS Tuning | ||||||
| 12 | Zaczep | 2 | 51217040545 | $1.53 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
