Fotel tylny elektryczny, rama for BMW 7 Series E65 745i (2003)

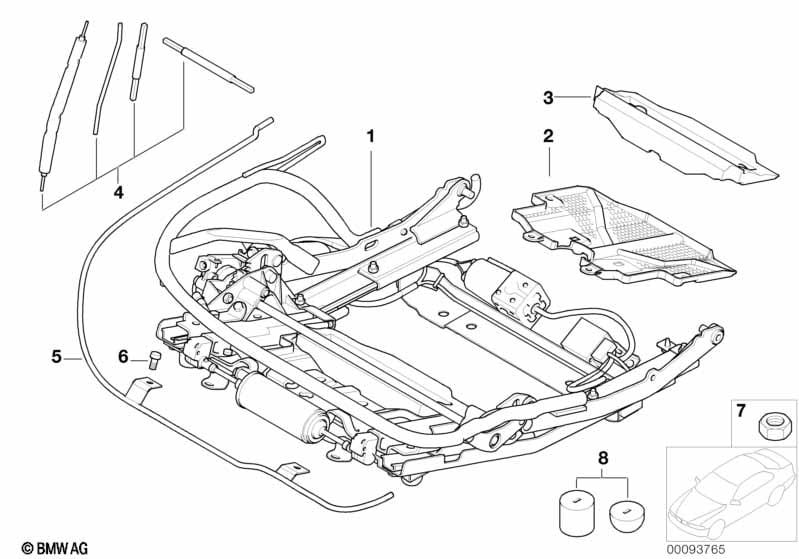

This Fotel tylny elektryczny, rama technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Fotel komfort siedz. tyln. reg. elektr. |
S460A=Tak |
||||||||
| 01 | Rama fotela lewa | 1 | 52207070483 | $1635.24 | Zakończono | Shop at ECS Tuning | ||||
| 01 | Rama fotela prawa | 1 | 52207070484 | $1635.24 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Skrzynka akustyczna | 2 | 52207070498 | $45.70 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Element piankowy górny | 2 | 52207038240 | $4.63 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Kpl. wałków elastycznych | 2 | 52207070494 | $69.68 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Pałąk lewy | 1 | 52207038167 | $15.51 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Pałąk prawy | 1 | 52207038168 | $15.51 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Nakrętka z podkładką | M8-Z2 | 6 | 07147144953 | $0.82 | Shop at ECS Tuning | ||||
| 08 | Zestaw naprawczy bufora/elem. ślizg. | 2 | 52207070497 | $36.35 | Shop at ECS Tuning | |||||
| 09 | Kpl. śrub | 2 | 52207070492 | $20.49 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
