Fotel tylny elektryczny, oparcie for BMW 7 Series E65 745i (2003)

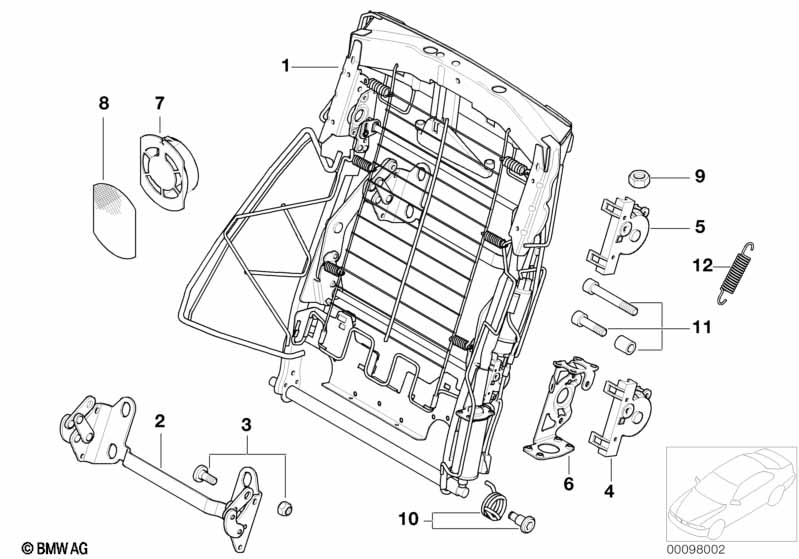

This Fotel tylny elektryczny, oparcie technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Regulacja fotela tylna elektryczna |
S460A=Tak |
|||||||||
| 01 | Rama oparcia lewa | 1 | 52207070485 | $1635.24 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 01 | Rama oparcia prawa | 1 | 52207070486 | $1635.24 | Zakończono, +podst | Shop at ECS Tuning | ||||
| 02 | Dźwignia przegubowa | 2 | 52207070480 | $83.22 | +podst | Shop at ECS Tuning | ||||
| 03 | Zestaw moc.dźwignię przegubową | 2 | 52207070481 | $48.02 | Shop at ECS Tuning | |||||
| 04 | Przekładnia pochylenia oparcia, lewa | 1 | 52207070507 | $108.05 | +podst | Shop at ECS Tuning | ||||
| 04 | Przekładnia pochylenia oparcia, prawa | 1 | 52207070508 | $108.05 | +podst | Shop at ECS Tuning | ||||
| 05 | Przekładnia górnej części oparcia, le. | 1 | 52207070509 | $108.05 | +podst | Shop at ECS Tuning | ||||
| 05 | Przekładnia górnej części oparcia, pr. | 1 | 52207070510 | $108.05 | +podst | Shop at ECS Tuning | ||||
| 06 | Uchwyt lewy | 1 | 52207070511 | $29.98 | Shop at ECS Tuning | |||||
| 06 | Uchwyt prawy | 1 | 52207070512 | $29.98 | Shop at ECS Tuning | |||||
| Dla samochodów z Klimatyzowane fotele tylne i Regulacja fotela tylna elektryczna |
S454A=Tak S460A=Tak |
|||||||||
| 07 | Wentylator oparcia | KUNSTSTOFF | 4 | 52109490351 | Shop at ECS Tuning | |||||
| 07 | Wentylator | ALU KABEL LANG | 4 | 52109490353 | Shop at ECS Tuning | |||||
| 08 | Wkładka siatkowa | 4 | 52207062867 | $8.52 | Shop at ECS Tuning | |||||
| Dla samochodów z Regulacja fotela tylna elektryczna |
S460A=Tak |
|||||||||
| 09 | Nakrętka samozabezpieczająca | 6 | 07149130026 | Shop at ECS Tuning | ||||||
| 10 | Zestaw mocujący oparcie | 2 | 52207070489 | $36.35 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Zestaw montażowy przekładni | 4 | 52207070491 | $18.17 | Shop at ECS Tuning | |||||
| 12 | Sprężyna | 2 | 52207070493 | $21.67 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
