Fotel tylny z napędem regul. elektr. for BMW 7 Series E65 745i (2003)

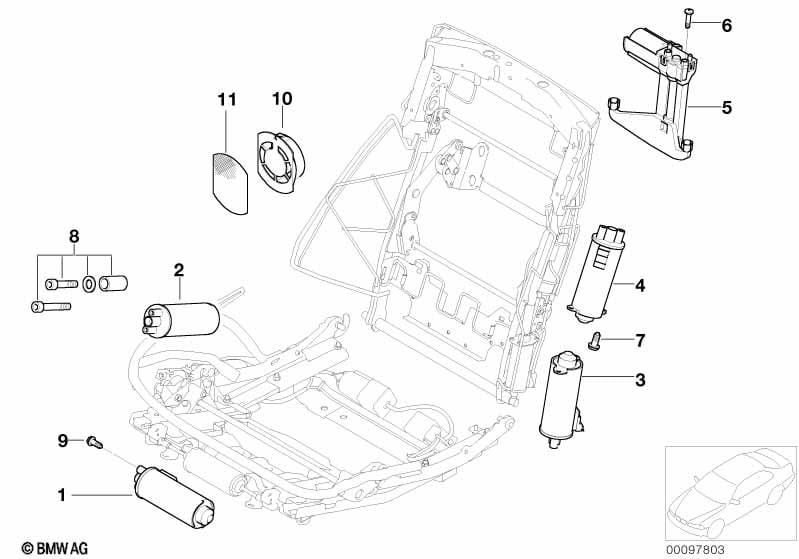

This Fotel tylny z napędem regul. elektr. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Fotel komfort siedz. tyln. reg. elektr. |
S460A=Tak |
|||||||||
| 01 | Napęd reg. przód-tył i reg. nachylenia | 2 | 67317070500 | $112.09 | Shop at ECS Tuning | |||||
| 02 | Napęd regulacji nachylenia fotela, lewy | 1 | 67317070487 | $230.80 | +podst | Shop at ECS Tuning | ||||
| 02 | Napęd regulacji nach. fotela, prawy | 1 | 67317070488 | $230.80 | +podst | Shop at ECS Tuning | ||||
| 03 | SIłownik nachyl. górnej cz. oparcia | 2 | 67317070513 | $151.00 | +podst | Shop at ECS Tuning | ||||
| 04 | Napęd nachylenia oparcia | 2 | 67317070506 | $116.19 | +podst | Shop at ECS Tuning | ||||
| Dla samochodów z Fotel komfort siedz. tyln. reg. elektr. i Fotel podstawowy (fotel seryjny) |
S460A=Tak =Tak |
|||||||||
| 05 | Siłownik zagłówka | 2 | 67317123326 | $139.48 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Śruba torx | M5X25-A2-70 | 2 | 07129900395 | $1.58 | Shop at ECS Tuning | ||||
| 07 | Kpl. śrub | 2 | 52207070492 | $20.49 | Shop at ECS Tuning | |||||
| 08 | Zestaw mocujący napęd nachylenia fotela | 2 | 52207070490 | $18.17 | Shop at ECS Tuning | |||||
| 09 | Śruba | T20 K 50X15 | 4 | 67317068059 | $5.12 | Shop at ECS Tuning | ||||
| Dla samochodów z Klimatyzowane fotele przednie |
S453A=Tak |
|||||||||
| 10 | Wentylator | ALU KABEL LANG | 9 | 52109490353 | Shop at ECS Tuning | |||||
| 11 | Wkładka siatkowa | 4 | 52207062867 | $8.52 | Shop at ECS Tuning | |||||
| 11 | Kratka siedzenia | 5 | 52207063579 | $6.88 | Shop at ECS Tuning | |||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
