Fot. przedn., elektr. i napędy oparcia for BMW 7 Series E65 745i (2003)

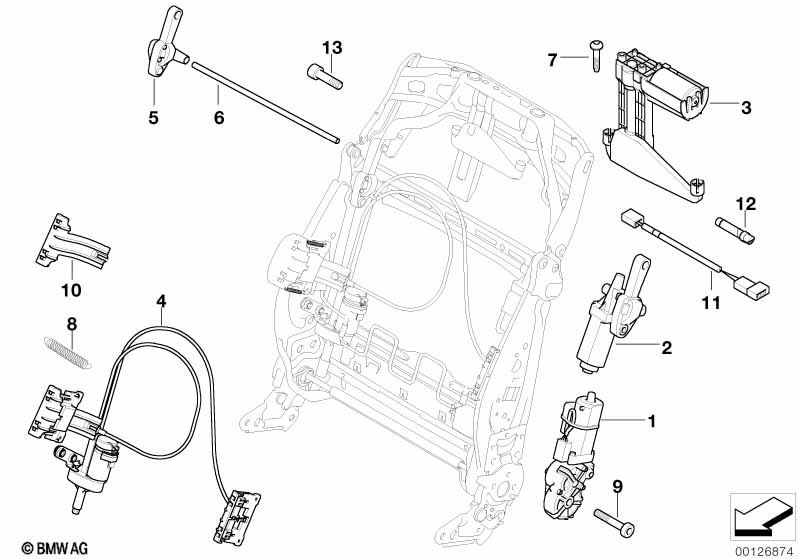

This Fot. przedn., elektr. i napędy oparcia technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Fotel komfort z pamięcią lub Elektryczna regulacja foteli z pamięcią |
S456A=Tak S459A=Tak |
||||||||
| Dla samochodów z Fotel komfort z pamięcią |
S456A=Tak |
|||||||||
| 01 | Napęd nachylenia oparcia, memory | 2 | 67317075946 | $139.48 | Shop at ECS Tuning | |||||
| Dla samochodów z Elektryczna regulacja foteli z pamięcią lub Fotel sportowy |
S459A=Tak S481A=Tak |
|||||||||
| 01 | Napęd nachylenia oparcia | 1 | 67317075942 | $119.67 | Zakończono | Shop at ECS Tuning | ||||
| 01 | Napęd nachylenia oparcia, memory | 1 | 67317075946 | $139.48 | Shop at ECS Tuning | |||||
| 01 | Napęd nachylenia oparcia | 1 | 67319146333 | $116.19 | Shop at ECS Tuning | |||||
| Dla samochodów z Fotel komfort z pamięcią |
S456A=Tak |
|||||||||
| 02 | Napęd nach. górn. cz. oparcia, memory | 2 | 67317065193 | $118.35 | Shop at ECS Tuning | |||||
| 03 | Napęd reg. wys. zagłówka, memory | 2 | 67317121096 | $221.04 | Shop at ECS Tuning | |||||
| Dla samochodów z Elektryczna regulacja foteli z pamięcią lub Fotel sportowy |
S459A=Tak S481A=Tak |
|||||||||
| 03 | Napęd regulacji wysokości zagłówka | 1 | 67317121095 | $181.13 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Napęd reg. wys. zagłówka, memory | 1 | 67317121096 | $221.04 | Shop at ECS Tuning | |||||
| Dla samochodów z Fotel komfort z pamięcią |
S456A=Tak |
|||||||||
| 04 | Napęd regul. szer. oparcia | 2 | 52107005422 | $324.12 | Shop at ECS Tuning | |||||
| 05 | Przekładnia | 2 | 52107068054 | $63.49 | Shop at ECS Tuning | |||||
| 06 | Wałek elastyczny | 2 | 52107068055 | $31.51 | Shop at ECS Tuning | |||||
| 07 | Śruba torx | M5X25-A2-70 | 4 | 07129900395 | $1.58 | Shop at ECS Tuning | ||||
| Dla samochodów z Fotel komfort z pamięcią |
S456A=Tak |
|||||||||
| 08 | Sprężyna | 4 | 52107068049 | $24.27 | Shop at ECS Tuning | |||||
| 09 | Śruba | T30 M6X40 | 4 | 52107068050 | $11.69 | Shop at ECS Tuning | ||||
| Dla samochodów z Fotel komfort z pamięcią |
S456A=Tak |
|||||||||
| 10 | Pałąk ślizgowy | 2 | 52107116703 | $10.38 | Shop at ECS Tuning | |||||
| 12 | Wkład gazowy | 2 | 52107068057 | $112.83 | Shop at ECS Tuning | |||||
| 13 | Śruba | M6 | 4 | 67317068056 | $11.17 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Fot. przedn., elektr. i napędy oparcia?
- This technical diagram illustrates the Fot. przedn., elektr. i napędy oparcia within the Fotele group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Napęd nachylenia oparcia, memory (Part #67317075946).
- Which models use the hardware listed in this Fot. przedn., elektr. i napędy oparcia?
- The hardware and components featured in the Fot. przedn., elektr. i napędy oparcia are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Napęd nachylenia oparcia, memory (67317075946) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fot. przedn., elektr. i napędy oparcia assembly?
- Each item in the Fot. przedn., elektr. i napędy oparcia corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Napęd nachylenia oparcia, memory by locating its position on the schematic, which then links to the official BMW part number 67317075946 for the Fotele section.
