Fotel przedni, szyna fotela for BMW 7 Series E65 745i (2003)

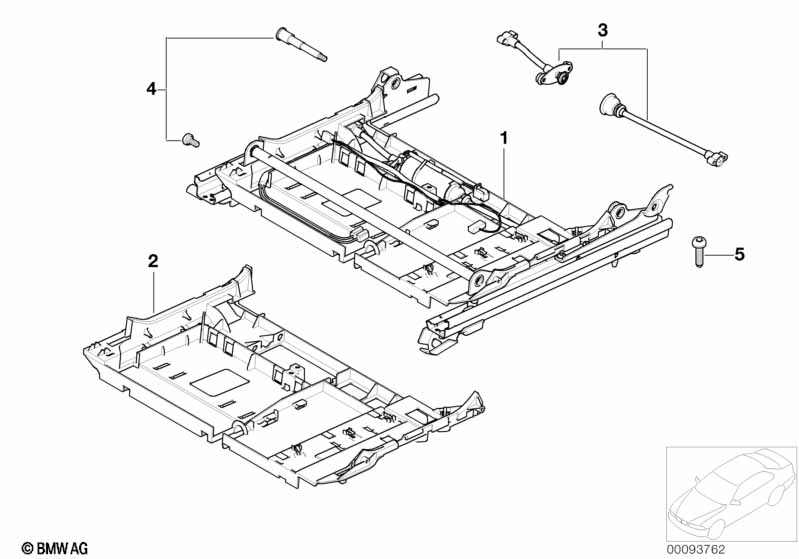

This Fotel przedni, szyna fotela technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Fotel komfort z pamięcią lub Elektryczna regulacja foteli z pamięcią lub Fotel sportowy |
S456A=Nie S459A=Nie S481A=Nie |
||||||||
| Szyna fotela przedłużona | ||||||||||
| 01 | Szyna fotela prawa | +30MM | 1 | 03/2003 | 52107148700 | $1162.63 | Zakończono, +podst | Shop at ECS Tuning | ||
| 01 | Szyna fotela lewa | +30MM | 1 | 03/2003 | 52107148701 | $1162.63 | Zakończono | Shop at ECS Tuning | ||
| 03 | Kpl. wałków elastycznych | L170 / L249 | 2 | 06/2003 | 52107132801 | $87.78 | Shop at ECS Tuning | |||
| 04 | Kpl. śrub | 2 | 52107068060 | $21.66 | Shop at ECS Tuning | |||||
| 05 | Śruba soczewkowa | M10X37 | 4 | 07149156953 | $1.36 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
