Siedzenie z prz., podp. lędźwi for BMW 7 Series E65 745i (2003)

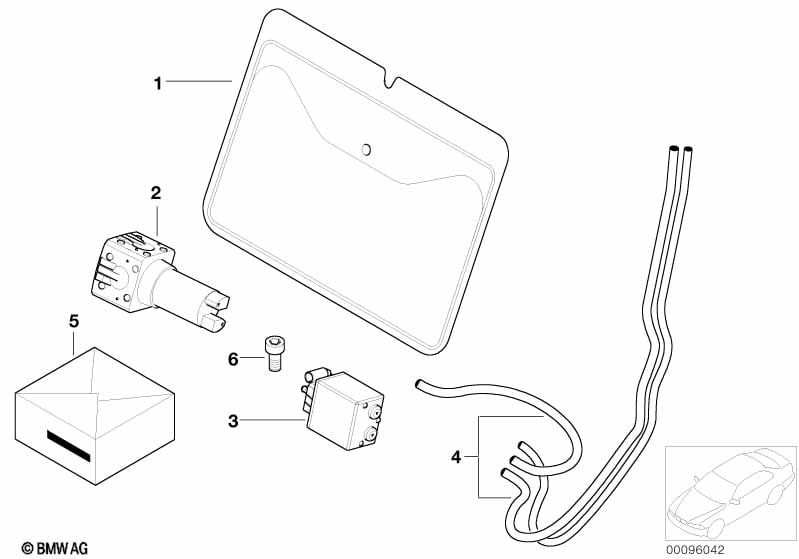

This Siedzenie z prz., podp. lędźwi technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Fotel podstawowy (fotel seryjny) |
=Tak |
||||||||
| 02 | Pompa lędźwiowa | 2 | 04/2007 | 52107037861 | $118.95 | Shop at ECS Tuning | ||||
| 03 | Zespół zaworowy | 2 | 04/2007 | 52107039190 | $112.83 | Shop at ECS Tuning | ||||
| 03 | Zespół zaworowy | 2 | 04/2007 | 67668385632 | $86.25 | Shop at ECS Tuning | ||||
| 04 | Kpl. przewodów elastycznych | 2 | 04/2007 | 52207070496 | $60.35 | Zakończono | Shop at ECS Tuning | |||
| 05 | Zestaw mocujący kable | 2 | 61117070505 | $15.73 | Shop at ECS Tuning | |||||
| 06 | Kpl. śrub | 2 | 52207070492 | $20.49 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Siedzenie z prz., podp. lędźwi?
- This technical diagram illustrates the Siedzenie z prz., podp. lędźwi within the Fotele group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Pompa lędźwiowa (Part #52107037861).
- Which models use the hardware listed in this Siedzenie z prz., podp. lędźwi?
- The hardware and components featured in the Siedzenie z prz., podp. lędźwi are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Pompa lędźwiowa (52107037861) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Siedzenie z prz., podp. lędźwi assembly?
- Each item in the Siedzenie z prz., podp. lędźwi corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Pompa lędźwiowa by locating its position on the schematic, which then links to the official BMW part number 52107037861 for the Fotele section.
