Fotel przedni, rama fotela for BMW 7 Series G12 M760LiX (2016)

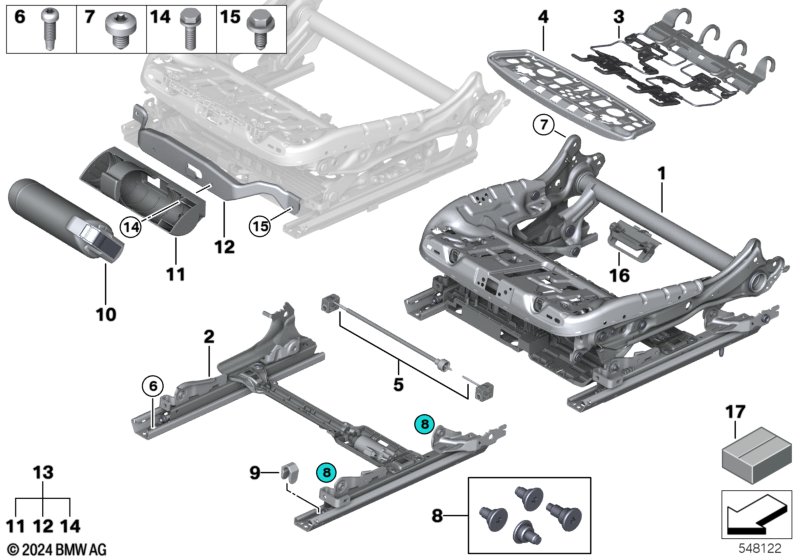

This Fotel przedni, rama fotela technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 M760LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rama fotela komfortowego lewa | 1 | 52107367545 | Shop at ECS Tuning | ||||||
| tylko w połączeniu z | ||||||||||
| 01 | Rama fotela komfortowego prawa | 1 | 52107367546 | Shop at ECS Tuning | ||||||
| tylko w połączeniu z | ||||||||||
| -- | Ogranicznik szyny fotela | 10MM | 4 | 52107382009 | Shop at ECS Tuning | |||||
| 02 | Elektryczna szyna fotela z lewej str. | 1 | 52107454051 | Shop at ECS Tuning | ||||||
| tylko w połączeniu z | ||||||||||
| 02 | Elektryczna szyna fotela z prawej str. | 1 | 52107454052 | Shop at ECS Tuning | ||||||
| tylko w połączeniu z | ||||||||||
| -- | Ogranicznik szyny fotela | 10MM | 1 | 52107382009 | Shop at ECS Tuning | |||||
| 03 | Pokrycie sprężynowe Basis | 2 | 52107299674 | Shop at ECS Tuning | ||||||
| 04 | Wspornik podparcia ud | 2 | 52107299673 | Shop at ECS Tuning | ||||||
| 05 | Kpl. wałków elastycznych | 2 | 52107314203 | Shop at ECS Tuning | ||||||
| 06 | Śruba z łbem walcowym | M10X28 | 8 | 07149321690 | Shop at ECS Tuning | |||||
| Dla samochodów z Executive Lounge Seating |
S4F4A=Tak |
|||||||||
| 06 | Śruba z łbem walcowym | M10X28 | 4 | 07149321690 | Shop at ECS Tuning | |||||
| 07 | Śruba z łbem wpuszczanym | M10X16-8.8 SW | 8 | 07119908419 | Shop at ECS Tuning | |||||
| 08 | Kpl. śrub | 1 | 52107474985 | NoS | Shop at ECS Tuning | |||||
| Dla samochodów z Executive Lounge Seating |
S4F4A=Nie |
|||||||||
| 09 | Ogranicznik szyny fotela | 10MM | 4 | 52107382009 | Shop at ECS Tuning | |||||
| Dla samochodów z Executive Lounge Seating |
S4F4A=Tak |
|||||||||
| 09 | Ogranicznik szyny fotela | 10MM | 2 | 52107382009 | Shop at ECS Tuning | |||||
| 10 | Gaśnica | 1 | 52109496756 | NoS | Shop at ECS Tuning | |||||
| 11 | Mocowanie gaśnicy | 1 | 52109496759 | Shop at ECS Tuning | ||||||
| 12 | Mocowanie gaśnicy | 1 | 52109496286 | NoS | Shop at ECS Tuning | |||||
| 14 | Śruba z podkładką | M6X20 | 2 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 15 | Śruba z podkładką | M8X18 | 2 | 07147279964 | Shop at ECS Tuning | |||||
| 16 | Uchwyt lampki ośw. strefy dla stóp | 2 | 52207398998 | Shop at ECS Tuning | ||||||
Uwagi
- NoS = No Stock (Część niemagazynowana centralnie.)
