Wiązki kabli drzwi for BMW 3 Series E36 325tds (1998)

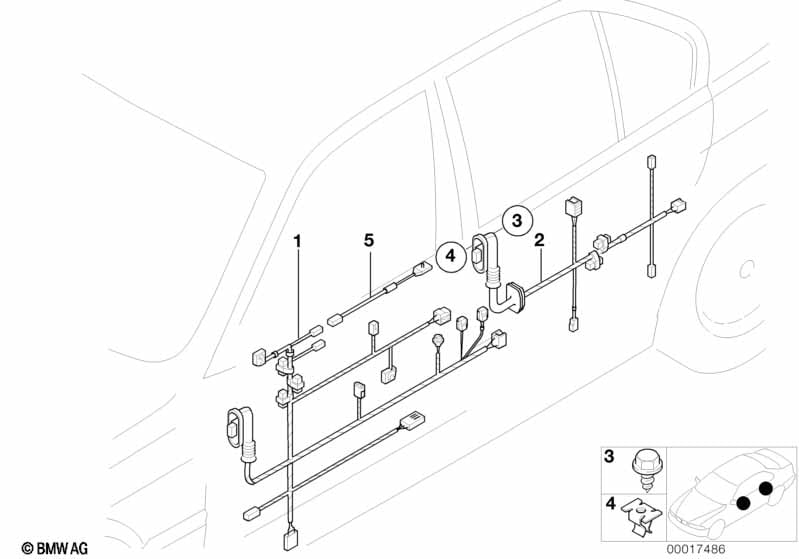

This Wiązki kabli drzwi technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wiązka przewodów el. str. kierowcy | 1 | 11/1996 | 61128383103 | $142.23 | Shop at ECS Tuning | ||||
| 01 | Wiązka przewodów strony pasażera | 1 | 11/1996 | 61128383104 | $142.23 | Shop at ECS Tuning | ||||
| 02 | Wiązka przewodów tylna lewa | 1 | 09/1996 | 61128379050 | $59.03 | Shop at ECS Tuning | ||||
| 02 | Wiązka przewodów tylna prawa | 1 | 09/1996 | 61128379056 | $59.03 | Zakończono | Shop at ECS Tuning | |||
| 03 | Blachowkręt | ST4,2X22-ZNT SW | 8 | 07149145030 | $0.27 | Shop at ECS Tuning | ||||
| 04 | Skrzynka Prestol | ST4,2 | 8 | 07129901744 | Shop at ECS Tuning | |||||
| Dla samochodów z Poduszka boczna dla kierowcy/pasażera |
S260A=Tak |
|||||||||
| 05 | Przewód adapt. modułu poduszek pow. | 2 | 09/1997 | 61128380117 | $14.30 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325tds Wiązki kabli drzwi?
- This technical diagram illustrates the Wiązki kabli drzwi within the Elektryka pojazdu group for the 3 Series E36 325tds produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Wiązka przewodów el. str. kierowcy (Part #61128383103).
- Which models use the hardware listed in this Wiązki kabli drzwi?
- The hardware and components featured in the Wiązki kabli drzwi are specific to the 3 Series E36 325tds produced during 1998. These technical specifications ensure that parts like the Wiązka przewodów el. str. kierowcy (61128383103) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wiązki kabli drzwi assembly?
- Each item in the Wiązki kabli drzwi corresponds to the numbered list below the illustration. For the 3 Series E36 325tds, you can identify the Wiązka przewodów el. str. kierowcy by locating its position on the schematic, which then links to the official BMW part number 61128383103 for the Elektryka pojazdu section.
